Having covered much of the theory of using the Accounts Framework and SLRequest class to integrate social networks into iOS applications in the previous chapter, this chapter will put this theory into practice by creating an application to request and display the entries in the timeline of a Twitter account.

Creating the TwitterApp Project

Begin by launching Xcode and selecting the options to create a new iOS application based on the Single View Application template with the product name set to TwitterApp. Set the Devices menu to Universal and the Language menu to Swift before creating the new project.

Designing the User Interface

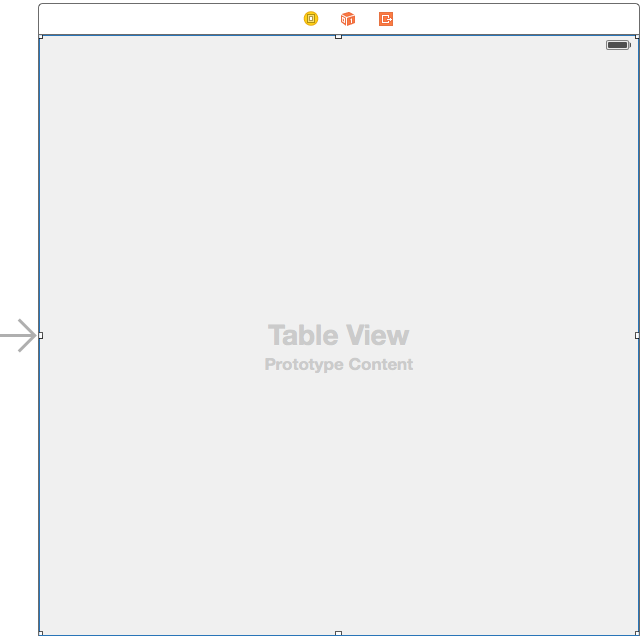

Navigate to the Main.storyboard file in the project navigator panel and select it to load it into the Interface Builder. From the Object Library panel, drag and drop a Table View component onto the view canvas and position it so that it fills the entire view space as shown in Figure 93-1. With the Table View selected in the storyboard canvas, use the Auto Layout Pin menu to configure Spacing to nearest neighbor constraints on all four sides of the view with the Constrain to margins option disabled.

Select the Table View object and display the Assistant Editor using View -> Assistant Editor -> Show Assistant Editor menu option and make sure that it is displaying the content of the ViewController.swift file. Ctrl-click on the Table View object in the view and drag the resulting line to the area immediately beneath the class declaration line in the Assistant Editor panel. Upon releasing the line, the connection panel will appear. Configure the connection as an Outlet named tweetTableView and click on the Connect button.

Figure 93-1

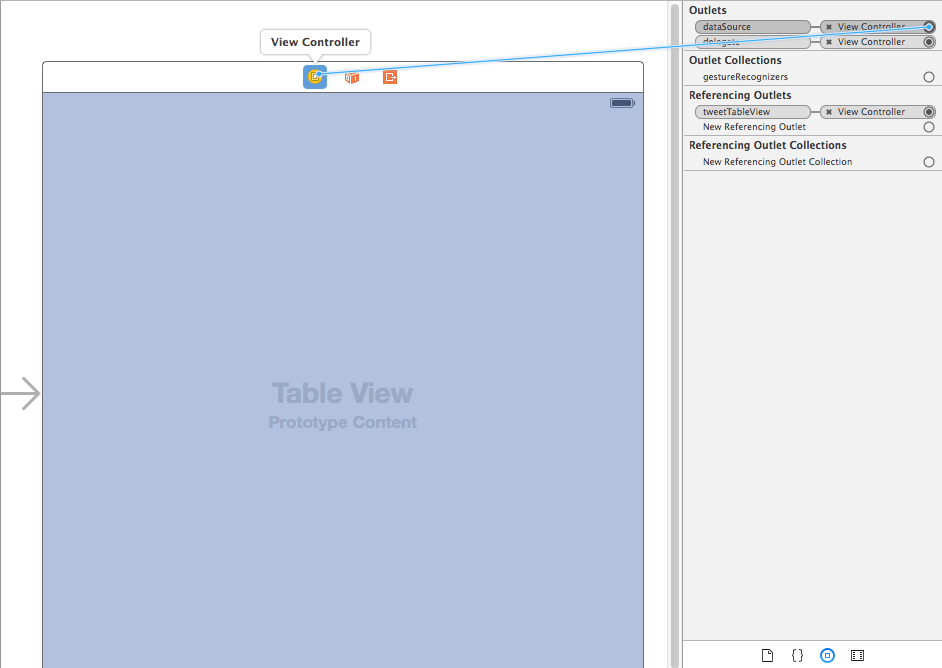

With the Table View still selected, display the Connections Inspector (View -> Utilities -> Show Connections Inspector). Click on the circle to the right of the dataSource outlet and drag the line to the Twitter App View Controller icon in the bar along the top of the view canvas as outlined in Figure 93-2:

Figure 93-2

Repeat the steps to establish the same connection for the delegate outlet.

Modifying the View Controller Class

Before writing code to talk to the Twitter API, some additional frameworks need to be imported to avoid undefined symbols when we start working with the Accounts and SLRequest classes. In addition, an array is going to be needed to act as the data source for the application which will ultimately contain the tweets that are returned by the Twitter API. The compiler also needs to be notified that this class is acting as both the data source and delegate for the Table View.

Select the ViewController.swift file and modify it as follows:

import UIKit
import Social
import Accounts

class ViewController: UIViewController, UITableViewDataSource, UITableViewDelegate {

    @IBOutlet weak var tweetTableView: UITableView!

    var dataSource = [AnyObject]()
.
.
.

<google>BUY_IOS8</google>

Accessing the Twitter API

The code to access the Twitter account and extract the posts from the account timeline will reside in a method named getTimeLine located in the ViewController.swift file. Select this file and modify it to add the code for this new method:

func getTimeLine() {

    let account = ACAccountStore()
    let accountType = account.accountTypeWithAccountTypeIdentifier(
		ACAccountTypeIdentifierTwitter)

    account.requestAccessToAccountsWithType(accountType, options: nil,
		completion: {(success: Bool, error: NSError!) -> Void in

        if success {
            let arrayOfAccounts =
		account.accountsWithAccountType(accountType)

            if arrayOfAccounts.count > 0 {
                let twitterAccount = arrayOfAccounts.last as! ACAccount

                let requestURL = NSURL(string:
	"https://api.twitter.com/1.1/statuses/user_timeline.json")

                let parameters = ["screen_name" : "@techotopia",
                    "include_rts" : "0",
                    "trim_user" : "1",
                    "count" : "20"]

                let postRequest = SLRequest(forServiceType:
			SLServiceTypeTwitter,
			requestMethod: SLRequestMethod.GET,
			URL: requestURL,
			parameters: parameters)

                postRequest.account = twitterAccount

                postRequest.performRequestWithHandler(
			{(responseData: NSData!,
			  urlResponse: NSHTTPURLResponse!,
 			  error: NSError!) -> Void in
                    var err: NSError?
                    self.dataSource = NSJSONSerialization.JSONObjectWithData(responseData, options: NSJSONReadingOptions.MutableLeaves, error: &err) as! [AnyObject]

                    if self.dataSource.count != 0 {
                        dispatch_async(dispatch_get_main_queue()) {
                            self.tweetTableView.reloadData()
                        }
                    }
                })
            }
        } else {
            println("Failed to access account")
         }
    })
}

Much of the code in this method will be familiar from the previous chapter. There are, however, some notable exceptions. First, the URL used in the request is intended to return the entries in the time line for a specific user’s Twitter account:

let requestURL = NSURL(string:
	"https://api.twitter.com/1.1/statuses/user_timeline.json")

The URL specified requires additional parameters specifying the Twitter user’s screen name and how much data is to be returned. In this case the request is limited to the 20 most recent posts and configured to include the tweet entities for a user with the screen name @techotopia:

let parameters = ["screen_name" : "@techotopia",
                    "include_rts" : "0",
                    "trim_user" : "1",
                    "count" : "20"]

The SLRequest object is primed to use the SLRequestMethod.GET HTTP request method. This is appropriate since this time we are getting, as opposed to posting, data:

let postRequest = SLRequest(forServiceType:
			SLServiceTypeTwitter,
			requestMethod: SLRequestMethod.GET,
			URL: requestURL,
			parameters: parameters)

Finally, the handler code for the postRequest method call now accesses the returned NSData object. The NSJSONSerialization class is then used to parse and serialize the data returned and assign it to the dataSource NSArray object. The Table View object is then told to reload the data it is displaying, causing it to re-read the data in the dataSource array and display it to the user. An important point to note here is that iOS performs the Twitter API request in a different thread from the main thread of the application. Threads are the cornerstone of any multitasking operating system and can be thought of as mini-processes running within a main process, the purpose of which is to enable at least the appearance of parallel execution paths within applications.

Since user interface updates take place in the main thread of the application, code has been added to ensure that the Table View reload call is made in the main thread as opposed to the thread used for the post request:

postRequest.performRequestWithHandler(
	{(responseData: NSData!,
	  urlResponse: NSHTTPURLResponse!,
 	  error: NSError!) -> Void in

      var err: NSError?
      self.dataSource =
		NSJSONSerialization.JSONObjectWithData(responseData,
			options: NSJSONReadingOptions.MutableLeaves,
				error: &err) as! [AnyObject]

      if self.dataSource.count != 0 {
          dispatch_async(dispatch_get_main_queue()) {
               self.tweetTableView.reloadData()
          }
      }
  })

All that remains is to implement the delegate methods for the Table View so that the tweets are displayed to the user.

Calling the getTimeLine Method

Having implemented the getTimeLine method we need to make sure it gets called when the application is launched. This involves the addition of a method call to the viewDidLoad method located in the ViewController.swift file. Now is also an opportune time to register the identifier of the table view cell that will be used to display the tweets:

override func viewDidLoad() {
    super.viewDidLoad()
    self.tweetTableView.registerClass(UITableViewCell.self,
		forCellReuseIdentifier: "Cell")
    self.getTimeLine()
}

The Table View Delegate Methods

At a minimum, the delegate for a Table View must implement the numberOfRowsInSection and cellForRowAtIndexPath delegate methods. In terms of this example application, the former simply needs to return the number of items in the dataSource array. Remaining within the ViewController.swift file, therefore, implement this method as follows:

func tableView(tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
    return dataSource.count
}

The cellForRowAtIndexPath method, on the other hand, needs to extract the text of the tweet corresponding to the current table row from the dataSource array and assign it to the table cell. Since each tweet is stored in the array in the form of an NSDictionary object, the tweet object first needs to be extracted and then the entry matching the “text” key in the dictionary used to access the text:

func tableView(tableView: UITableView, cellForRowAtIndexPath indexPath: NSIndexPath) -> UITableViewCell {

    let cell =
       self.tweetTableView.dequeueReusableCellWithIdentifier("Cell")
		as! UITableViewCell
    let row = indexPath.row
    let tweet = self.dataSource[row] as! NSDictionary
    cell.textLabel!.text = tweet.objectForKey("text") as? String
    cell.textLabel!.numberOfLines = 0
    return cell
}

An additional point to note in the above method is the line which assigns a zero value to the numberOfLines property cell UILabel instance object. This ensures that the tweet text is displayed using line wrapping in the event that the tweet is longer than the width of the cell by informing the label that it can use as many lines as needed to display the text.

Building and Running the Application

Click on the run button located in the Xcode toolbar and wait for the application to launch. The application will then display the 20 most recent tweets posted to the specified account.

<google>ADSDAQBOX_FLOW</google>

Figure 93-3

Summary

In addition to posting entries, the SLRequest class can be used to retrieve information from supported social networks. In this chapter, a list of tweets posted to a Twitter account have been requested using the SLRequest class and displayed to the user within a Table View. The example also introduced the use of the NSJSONSerialization class to serialize the data returned from a Twitter API request.
