One of the most powerful aspects of the openSUSE desktop (and Linux desktops in general) is the ability to access your own personal desktop remotely. This provides two extremely useful features. Firstly it enables you, or another person to view and interact with your desktop environment from another computer system either on the same network or over the internet. This is useful if you need to work on your computer when you are away from your desk while traveling or sitting in a coffee shop. It is also useful in situations where a co-worker or IT support technician needs access to your desktop to resolve a problem. This essentially means you can access your own, customized desktop, on your own system from anywhere in the world where you have access to a computer with an internet connection.

Secondly, in addition to providing access to your primary desktop (the one you see when you switch on your monitor every morning) it enables you to create multiple desktops and connect to them remotely.

This openSUSE Linux remote desktop functionality is based on technology called Virtual Network Computing (VNC) and in this chapter we will cover the key aspects of configuring and using remote desktops with openSUSE Linux. It is important to note that there are both secure and insecure ways to access a remote desktop. In this chapter we will be looking at the insecure way of accessing a remote desktop. This is only recommended for accessing a desktop located on the same local network which is protected by a firewall. If you plan to access your remote desktop over an internet connected the recommended secure method is described in detail later in this chapter.


Contents


Activating Remote Desktop Access

The first step in setting up remote desktop access is to activate it and define some basic security settings. These settings are configured in the Remote Desktop Preferences dialog. To access this dialog, open the desktop Computer panel, select Control Center followed by System and click on Remote Desktop. When selected the following window will appear:

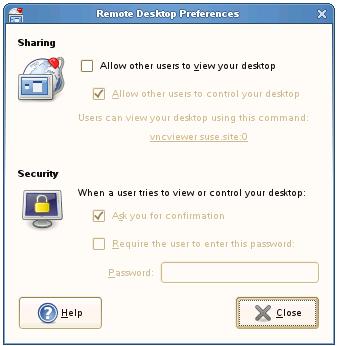

Configuring Remote Desktop Access on an openSUSE system


In this dialog the following configuration options are available:

  • Allow others to view your desktop - Activates remote desktop access for viewing purposes.
  • Allow other users to control your desktop - Allows users accessing your remote desktop to control the desktop. In other words the remote user can do anything to your desktop that they want using their mouse and keyboard as if they were sitting physically at the local system.
  • Ask for confirmation - When selected, this option cause a dialog to appear warning you of an attempt by a remote user to connect and prompting you to confirm or deny the connection. If you are likely to want to log in remotely you will need to turn this off since you will not be at the local system to accept your own connection.
  • Require the user to enter this password - Specifies a password which must be entered by the remote user to access your desktop. It is strongly advised that you select this option and specify a password.

Finally this screen specifies the command to run on the remote system to access the desktop. Once you have configured Remote Desktop access you are ready to try connecting.

Configuring the openSUSE Firewall to Allow Remote Desktop Access

The next step in configuring remote desktop access to an openSUSE system is to adjust the firewall to allow the connection. This is achieved by enabling VNC service in the Firewall configuration tool. Click on Computer->Control Center and select YaST from the System category of the Control Center panel. In the YaST screen click on Security and Users and select 'Firewall from the left hand panel. the Firewall Configuration tool will subsequently load. Select Allowed Services from the list of options so that the following panel appear. Open the Services to allow selection menu and scroll until you find VNC:


Enabling VNC on the openSUSE Firewall


With VNC displayed in the Services to allow menu click on the Add button to add the service to this allowed list. Click on Next to apply the change and then the Finish button to exit the openSUSE configuration tool.


Accessing a Remote openSUSE Linux Desktop

As mentioned previously there are both secure and insecure methods for accessing a remote desktop. In this section we assume that the desktop is being accessed by a remote system on the same local network where security is not a concern. Read the sections later in this chapter for details on establishing a secure connection if you are connecting from a system outside your firewall.

Having configured the remote desktop settings on the local system move to another system on your network, open a terminal window and enter the command specified in the Remote Desktop Preferences dialog, for example:

vncviewer hostname:0

where hostname is either the hostname or IP address of the remote system.

If you configured the remote system to prompt to approve a connection a dialog will appear on the remote system. Until the connection is approved the vncviewer session will wait. Once approved, or if no approval is required, VNC will prompt for the password (assuming one was defined):

Vnc auth.jpg

If you see a message similar to the following then you will need to use the secure method of remote desktop display outlined in the next section:

main:     unable to connect to host: No route to host (113)

Otherwise, enter the password and a new screen will appear containing the desktop from the remote system. If remote desktop control was enabled you can interact with the desktop as if you were sitting at the remote screen.

This section assumed that the remote desktop was being accessed from a Linux or Unix system. Access is also possible from a Windows system.

Accessing a Remote openSUSE Linux Desktop from a Windows System

In order to access a Linux remote desktop from a Windows system the first step is to install a Windows VNC client on the Windows system. There are a number of VNC packages available for Windows. In this chapter we will look at TightVNC (http://www.tightvnc.com).

Download and install TightVNC on your Windows system. Once installed, launch the TightVNC Viewer and in the resulting Connection details dialog enter the IP address or hostname of the remote system and press OK. Enter the password if one is required. The screen should load and display the remote desktop,

You may also enter the port number in the form hostname::5900 (screen 0 in VNC uses port 5900). TightVNC assumes port 5900 if none is specified but when we look at setting up additional desktops later in this chapter we will need to specify port numbers in order to connect.

Establishing a Secure Remote Desktop Session

The remote desktop configurations we have explored so far in this chapter are considered to be insecure because no encryption is used. This is acceptable when the remote connection does not extend outside of an internal network protected by a firewall. When a remote session is required over an internet connection a more secure option is needed. This achieved by tunneling the remote desktop through a secure shell (SSH) connection.

Before a secure connection is established the SSH server must be installed and running on the system to which the connection is to be established. Fortunately, this is installed and enabled by default when openSUSE is first installed.

Assuming the SSH server is installed and active it is time to move to the other system. At the other system, log in to the remote system using the following command, which will establish the secure tunnel between the two systems:

 ssh -L 5900:localhost:5900 hostname

In the above example, hostname is either the hostname or IP address of the remote system. Log in using your account and password. The secure connection is now established and it is time to launch vncviewer so that it uses the secure tunnel. Leaving the ssh session running in the other terminal window, launch another terminal and enter the following command:

vncviewer localhost::5900

The vncviewer session will prompt for a password if one is required, and then launch the VNC viewer providing secure access to your desktop environment.

If you are connecting to the remote desktop from outside the firewall keep in mind that the IP address for the ssh connection will be the external IP address provided by your ISP, not the LAN IP address of the remote system (since this IP address is not visible to those outside the firewall). You will also need to configure your firewall to forward port 22 (for the ssh connection) to the IP address of the system running the desktop. It is not necessary to forward port 5900. Steps to perform port forwarding differ between firewalls, so refer to the documentation for your firewall, router or wireless base station for details specific to your configuration.

Establishing a Secure Remote Desktop Session from a Windows System

A similar approach is taken to establishing a secure desktop session from a Windows system. Assuming that you have a VNC client installed (as described above) the one remaining requirement is a Windows ssh client. A populuar ssh client for Windows is (PuTTY).

Once PuTTY is downloaded and installed the first step is to set up a secure connection between the Windows system and the remote Linux system with appropriate tunneling configured. When launched PuTTY displays the following screen:

Putty main screen.jpg

Enter the IP address or host name of the remote host (or the external IP address of the gateway if you are connecting from outside the firewall). The next step is to set up the tunnel. Click on the + next to SSH in the Category tree on the left hand side of the dialog and click on Tunnels. The screen should appear as follows:

Putty tunnels screen.jpg

Enter 5900 as the Source port and localhost:5900 as the Destination and click on Add. Finally return to the main screen ny clicking on the Session category. Enter a name for the session in the Saved Sessions text field and press save. Click on Open to establish the connection. A terminal window will appear with the login prompt from the remote system. Enter your user login and password credentials.

The SSH connection is now established. Launch the TightVNC viewer and enter localhost::5900 in the VNC Server text field and click on Connect. The viewer will establish the connection, prompt for the password and then display the desktop. You are now accessing the remote desktop of a Linux system on Windows.

Creating Additional Desktops

In the examples so far we have only covered remote access to the primary desktop. By primary desktop we mean the desktop you see when you sit at your computer and turn on the monitor. While this is fine for a single user system we should not lose sight of the fact that Linux is a multi-user operating system and it will often be necessary for more than one person to have remote desktop access at a time. While it might be fun to watch everyone fight over the mouse point as they share the same desktop it is clear that not much work will get done. The solution to this is to run multiple desktops for the users to connect to.

New desktop environments are created using the vncserver utility. The first step is to assign a password to protect these desktops. THis can be achieved using the vncpasswd tool. Run this tool from the command-line prompt in a terminal window and enter the password of your choice.

The desktop we have used so far in this chapter is desktop :0. New desktops must be assigned different numbers. For example to launch desktop 1: run the following command from a terminal window command-line prompt:

vncserver :1

This will start a new desktop in the background ready for a remote user to connect to. To connect to the desktop follow the steps for connecting to desktop :0 outlined above but this time use port 5901 instead of port 5900 (you will similarly use port 5902 for desktop :2 and so on).

When the desktop appears you will notice that it doesn't look much like the standard desktop:


Opensuse linux remote desktop.jpg


The problem here is that we need to configure the VNC session to launch the correct desktop. To do this shutdown the VNC desktop session as follows:

vncserver -kill :1

Next go to your home folder and edit the .vnc/xstartup file. This will look similar to the following file:

#!/bin/sh

# Uncomment the following two lines for normal desktop:
# unset SESSION_MANAGER
# exec /etc/X11/xinit/xinitrc

[ -x /etc/vnc/xstartup ] && exec /etc/vnc/xstartup
[ -r $HOME/.Xresources ] && xrdb $HOME/.Xresources
xsetroot -solid grey
vncconfig -iconic &
xterm -geometry 80x24+10+10 -ls -title "$VNCDESKTOP Desktop" &
twm &

To configure this startup script to launch the standard desktop (known as the GNOME desktop) change the twm& line so that the file reads:

#!/bin/sh

# Uncomment the following two lines for normal desktop:
# unset SESSION_MANAGER
# exec /etc/X11/xinit/xinitrc

[ -x /etc/vnc/xstartup ] && exec /etc/vnc/xstartup
[ -r $HOME/.Xresources ] && xrdb $HOME/.Xresources
xsetroot -solid grey
vncconfig -iconic &
xterm -geometry 80x24+10+10 -ls -title "$VNCDESKTOP Desktop" &

unset SESSION_MANAGER
gnome-session &

Restart the vncserver:

vncserver :1 -extension XFIXES

Finally, reconnect from the remote system. The full desktop should now appear in the VNC viewer window.
