The preceding chapters have covered in detail the steps involved in using a storyboard to implement dynamic table views in iOS 5 iPhone applications. As outlined in the chapter entitled An Overview of iOS 5 Table Views and Xcode Storyboards, Xcode also provides the option to create static table views.

Static table views are ideal in situations where a pre-determined number of items need to be displayed to the user. The fact that static table views do not need a data source makes them fast and easy to implement.

The goal of this chapter is to work through the creation of a simple application designed to demonstrate the use of an Xcode storyboard to implement a static table view.


Contents


An Overview of the Static Table Project

The preceding chapters worked through the implementation of an application designed to present the user with a list of cars. A dynamic table was used for this list since the number of table cells to be displayed was dependent upon the number of cars present in a data model. Selecting a car from the list triggered a segue to a second screen displaying details about the selected car. Regardless of the car selected, the detail screen always displays three items (the car’s make and model together with a photograph). Whist the previous example used a generic view controller and UIView for this purpose, clearly this is an ideal candidate for a static table view.

The remainder of this chapter will work through the implementation of a simple, stand alone application designed to demonstrate the implementation of a static table view using a storyboard. The finished application will essentially implement in the car detail view from the previous chapter as a static table view.

Creating the Project

As with the previous project we will take advantage of the template provided by the Single View Application without actually using the single view provided by Xcode. Begin, therefore, by launching Xcode and creating a new single view application named StaticTable with a matching prefix. Before creating the project make sure that both the Use Storyboard and Automatic Reference Counting options are enabled.

As we will not be needing the provided view controller, select and delete the StaticTableViewController.h and StaticTableViewController.m files from the navigation panel. Also select the MainStoryboard.storyboard file and within the storyboard editor select the Static Table View Controller item before pressing the keyboard delete key to remove the scene.


Adding a Table View Controller

The example application is going to consist of a single table view controller. Adding this controller is a two stop process involving the addition of both a new scene to the storyboard and also the files for a new subclass of UITableViewController.

With the storyboard editor still visible, drag and drop and Table View Controller object from the Object Library panel onto the storyboard canvas. With the scene added, select the File -> New -> New File… menu option and select the option to add a UIViewController subclass. Click Next and on the options screen, name the new class StaticTableViewController and set the Subclass of menu to UITableViewController. Make sure that both the Targeted for iPad and With XIB for user interface options are disabled before proceeding with the creation process.

Once again, select the MainStoryboard.storyboard file and select the Table View Controller scene so that it is highlighted in blue. Display the Identity Inspector panel (View -> Utilities -> Show Identity Inspector) and use the Class drop down menu to change the class from UITableViewController to StaticTableViewController.

Changing the Table View Content Type

By default, Xcode makes the assumption that the table view is to be dynamic. The most obvious indications of this are the presence of a Prototype Cell within the table view and the words “Prototype Content” in the view. Click within the grey area of the table view and display the Attributes Inspector panel. The Content attribute will currently be set to Dynamic Prototypes so use the menu to change the attribute to Static Cells. At this point the table view within the storyboard will change to display a static table containing three rows as illustrated in Figure 20-1:


A new static table view in an Xcode storyboard

Figure 20-1


Designing the Static Table

With a static table view added to the project, the full power of Interface Builder is available to us to design the layout and content of the table and cells. The first step is to change the table view style. With the table view selected in the storyboard and the Attributes Panel displayed, change the Style attribute to Grouped and the Sections attribute to 2. The table view should now consist of two group sections with three rows per section. For the purposes of this example we only need two rows in the top section so click on the third row to highlight it and press the delete key on the keyboard. Note that additional rows may be added if required by selecting the corresponding table view section and changing the Rows property.

In the case of the bottom section, only one row is required so Command-click on the bottom two rows and delete them from the view.

Select the top section by clicking on the shaded area immediately above the cells (note that sections may also be selected by clicking on the Table View Section item in the toolbar strip located across the top of the storyboard editor and also from the hierarchy list located in the center panel of the Xcode window). Within the Attributes Inspector change the Header property to Car Details. Repeat this step on the lower section to change the header to Car Photo.

Next, stretch the height of the single cell in the bottom section so that it fills the remainder of the table view such that the table view appears as illustrated in the following figure:


A static table view in an Xcode storyboard scene

Figure 20-2


Adding Items to the Table Cells

Using the Object Library panel, drag and drop an Image View object into the cell in the bottom section and resize it to fill most of the available space. Also drag and drop labels into the two cells in the top section and set appropriate text properties so that the layout resembles that of Figure 20-3.


The user interface of an example static table view storyboard scene

Figure 20-3


The user interface design of the table view is now complete so the next step is to create outlets to the labels and the image view. These, of course, need to be declared in the StaticTableViewController subclass.

So far in this book we have added outlets manually in the code and then connected them visually in Interface Builder. In this chapter we will briefly introduce an alternative mechanism for declaring and connecting outlets that was introduced in Xcode version 4.0. This involves the use of a feature known as the Assistant Editor. Having introduced this concept we will continue to outline the actual manual code changes in future chapters because we want you to have a full understanding of how applications are constructed. You are more than welcome, however, to continue using the Assistant Editor mechanism if you decide that you prefer it.

Display the Assistant Editor either from the View -> Assistant Editor -> Show Assistant Editor menu option, or by selecting the middle button in the Editor cluster of buttons in the Xcode toolbar (the button displaying the bow tie and tuxedo image). Click on the label located to the right of the “Make” label to select it, and then Ctrl-click and drag the resulting line to the body of the @interface section in the assistant editor panel as illustrated in Figure 20-4:


Establishing an outlet connection using the Xcode code assistant

Figure 20-4


Upon releasing the line a dialog (Figure 20 5) will appear where information about the outlet needs to be declared. The default settings do not need to be changed so simply enter carMakeLabel into the Name field before clicking on the Connect button.

Establishing an outlet connection using the Xcode code assistant

Figure 20-5

Repeat the above steps to establish connections between the second label and the image view, naming the outlets carModelLabel and carImageView respectively. Once the outlets are created and connected close the assistant window before proceeding.

Modifying the StaticTableViewController Class

When the StaticTableViewController class was created earlier in the chapter it was declared as being a subclass of UITableViewController. As a result of this selection, Xcode added a number of template methods intended to provide the basis for a data source for the table view. As previously discussed, however, static table views do not use a data source so these methods need to be removed.

Select the StaticTableViewController.m file and scroll down to the line that reads:

#pragma mark - Table view data source

To remove the data source from the class, delete the methods after this marker until you reach the delegate marker line:

#pragma mark - Table view delegate

All that remains to be implemented is the code to set the label and image outlets. Since this only needs to be performed once, the code may simply be added to the viewDidLoad: method of the class:

- (void)viewDidLoad
{
    [super viewDidLoad];

    self.carMakeLabel.text = @"Volvo";
    self.carModelLabel.text = @"S60";
    self.carImageView.image = [UIImage imageNamed: @"volvo_s60.jpg"];
}

Finally, use a Finder window to locate the Volvo_s60.jpg file downloaded in the previous chapter and drag and drop it onto the Supporting Files section of the project navigator.

Building and Running the Application

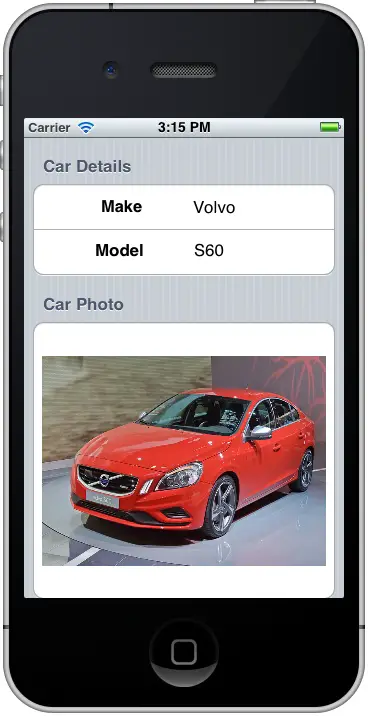

The application is now complete and ready to run. Click on the Run button in the Xcode toolbar and wait for the application to load into the IOS Simulator. Once loaded the static table should appear:


An example iOS 5 iPhone Storyboard static Table View App running

Figure 20-6


As an exercise to provide further re-enforcement of the concept of storyboards and table views, replace the standard view controller based car detail scene in the TableViewStory application from the previous chapter with a static table view similar to that outlined in this chapter.

Summary

Whilst dynamic, or prototype content, based table views are ideal for displaying data from a data source that will have a variable number of elements, static table views provide an ideal alternative when a known number of items need to be displayed. In this chapter we have worked through a simple example that demonstrates the use of storyboards to create a static table view.
