Using Fragments in Android Studio - A Kotlin Example
| Previous | Table of Contents | Next |
| An Introduction to Kotlin Android Fragments | Creating and Managing Overflow Menus on Android with Kotlin |
|
You are reading a sample chapter from the Android Studio 3.0 / Android 8 Edition book. Purchase the fully updated Android Studio Hedgehog Kotlin Edition of this publication in eBook or Print format Android Studio Hedgehog Essentials - Kotlin Edition eBook (PDF)/Print edition contains 94 chapters and over 830 pages
|
As outlined in the previous chapter, fragments provide a convenient mechanism for creating reusable modules of application functionality consisting of both sections of a user interface and the corresponding behavior. Once created, fragments can be embedded within activities.
Having explored the overall theory of fragments in the previous chapter, the objective of this chapter is to create an example Android application using Android Studio designed to demonstrate the actual steps involved in both creating and using fragments, and also implementing communication between one fragment and another within an activity.
About the Example Fragment Application
The application created in this chapter will consist of a single activity and two fragments. The user interface for the first fragment will contain a toolbar of sorts consisting of an EditText view, a SeekBar and a Button, all contained within a RelativeLayout view. The second fragment will consist solely of a TextView object, also contained within a RelativeLayout view.
The two fragments will be embedded within the main activity of the application and communication implemented such that when the button in the first fragment is pressed, the text entered into the EditText view will appear on the TextView of the second fragment using a font size dictated by the position of the SeekBar in the first fragment.
Since this application is intended to work on earlier versions of Android, it will also be necessary to make use of the appropriate Android support library.
Creating the Example Project
Create a new project in Android Studio with Kotlin support enabled, entering FragmentExample into the Application name field and ebookfrenzy.com as the Company Domain setting before clicking on the Next button.
On the form factors screen, enable the Phone and Tablet option and set the minimum SDK setting to API 14: Android 4.0 (IceCreamSandwich). Continue to proceed through the screens, requesting the creation of an Empty Activity named FragmentExampleActivity with a corresponding layout resource file named activity_fragment_example.
Click the Finish button to begin the project creation process.
Creating the First Fragment Layout
The next step is to create the user interface for the first fragment that will be used within our activity.

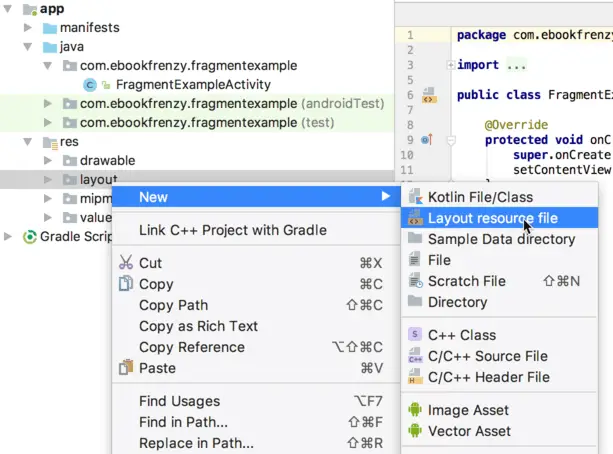

This user interface will, of course, reside in an XML layout file so begin by navigating to the layout folder located under app -> res in the Project tool window. Once located, right-click on the layout entry and select the New -> Layout resource file menu option as illustrated in Figure 37-1:
In the resulting dialog, name the layout toolbar_fragment and change the root element to RelativeLayout before clicking on OK to create the new resource file.
The new resource file will appear within the Layout Editor tool ready to be designed. Switch the Layout Editor to Text mode and modify the XML so that it reads as outlined in the following listing to add three new view elements to the layout:
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent"> <Button android:id="@+id/button1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_below="@+id/seekBar1" android:layout_centerHorizontal="true" android:layout_marginTop="17dp" android:text="Change Text" /> <EditText android:id="@+id/editText1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignParentTop="true" android:layout_centerHorizontal="true" android:layout_marginTop="16dp" android:ems="10" android:inputType="text" > <requestFocus /> </EditText> <SeekBar android:id="@+id/seekBar1" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_alignParentStart="true" android:layout_below="@+id/editText1" android:layout_marginTop="14dp" android:layout_alignParentLeft="true" /> </RelativeLayout>
Once the changes have been made, switch the Layout Editor tool back to Design mode and click on the warning button in the top right-hand corner of the design area. Select the hardcoded text warning, click the Fix button and assign the string to a resource named change_text.

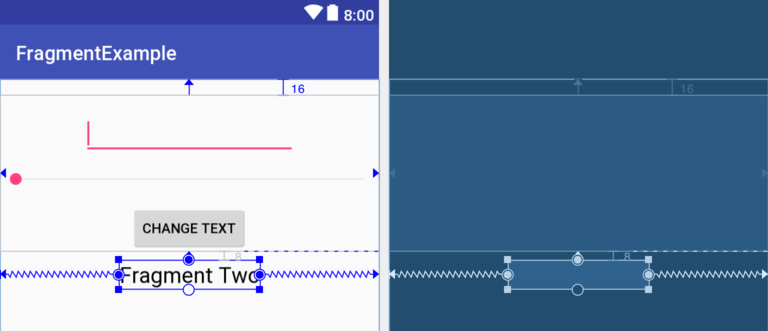

Upon completion of these steps, the user interface layout should resemble that of Figure 37-2:
With the layout for the first fragment implemented, the next step is to create a class to go with it.
|
You are reading a sample chapter from the Android Studio 3.0 / Android 8 Edition book. Purchase the fully updated Android Studio Hedgehog Kotlin Edition of this publication in eBook or Print format Android Studio Hedgehog Essentials - Kotlin Edition eBook (PDF)/Print edition contains 94 chapters and over 830 pages
|
Creating the First Fragment Class
In addition to a user interface layout, a fragment also needs to have a class associated with it to do the actual work behind the scenes. Add a class for this purpose to the project by unfolding the app -> java folder in the Project tool window and right-clicking on the package name given to the project when it was created (in this instance com.ebookfrenzy.fragmentexample). From the resulting menu, select the New -> Kotlin File/Class option. In the resulting Create New Class dialog, name the class ToolbarFragment, change the Kind setting to Class and click on OK to create the new class.
Once the class has been created it should, by default, appear in the editing panel where it will read as follows:
package com.ebookfrenzy.fragmentexample
/**
* Created by <name> on <date>.
*/
class ToolbarFragment {
}
For the time being, the only changes to this class are the addition of some import directives and the overriding of the onCreateView() method to make sure the layout file is inflated and displayed when the fragment is used within an activity. The class declaration also needs to indicate that the class extends the Android Fragment class:
package com.ebookfrenzy.fragmentexample
import android.os.Bundle
import android.support.v4.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import android.widget.Button
class ToolbarFragment : Fragment() {
override fun onCreateView(inflater: LayoutInflater?,
container: ViewGroup?, savedInstanceState: Bundle?): View? {
// Inflate the layout for this fragment
val view = inflater?.inflate(R.layout.toolbar_fragment,
container, false)
return view
}
}
Later in this chapter, more functionality will be added to this class. Before that, however, we need to create the second fragment.
Creating the Second Fragment Layout
Add a second new Android XML layout resource file to the project, once again selecting a RelativeLayout as the root element. Name the layout text_fragment and click OK. When the layout loads into the Layout Editor tool, change to Text mode and modify the XML to add a TextView to the fragment layout as follows:
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent"> <TextView android:id="@+id/textView1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_centerHorizontal="true" android:layout_centerVertical="true" android:text="Fragment Two" android:textAppearance="?android:attr/textAppearanceLarge" /> </RelativeLayout>

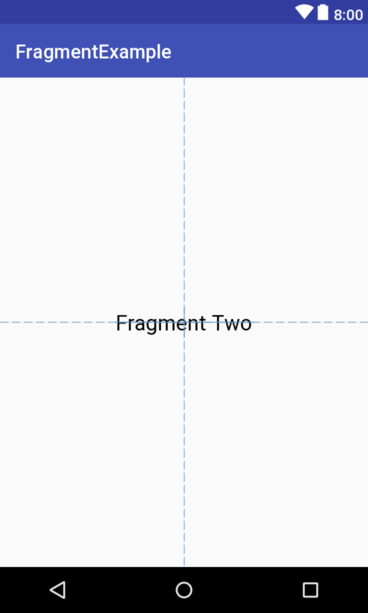

Once the XML changes have been made, switch back to Design mode and extract the string to a resource named fragment_two. Upon completion of these steps, the user interface layout for this second fragment should resemble that of Figure 37-3.
As with the first fragment, this one will also need to have a class associated with it. Right-click on app -> java -> com.ebookfrenzy.fragmentexample in the Project tool window. From the resulting menu, select the New -> Kotlin File/Class option. Name the fragment TextFragment, change the Kind menu to Class and click OK to create the class.
Edit the new TextFragment.kt class file and modify it to implement the onCreateView() method and designate the class as extending the Android Fragment class:
package com.ebookfrenzy.fragmentexample
import android.os.Bundle
import android.support.v4.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
class TextFragment : Fragment() {
override fun onCreateView(inflater: LayoutInflater?,
container: ViewGroup?,
savedInstanceState: Bundle?): View? {
return view
}
}
Now that the basic structure of the two fragments has been implemented, they are ready to be embedded in the application’s main activity.
|
You are reading a sample chapter from the Android Studio 3.0 / Android 8 Edition book. Purchase the fully updated Android Studio Hedgehog Kotlin Edition of this publication in eBook or Print format Android Studio Hedgehog Essentials - Kotlin Edition eBook (PDF)/Print edition contains 94 chapters and over 830 pages
|
Adding the Fragments to the Activity
The main activity for the application has associated with it an XML layout file named activity_fragment_example.xml. For the purposes of this example, the fragments will be added to the activity using the <fragment> element within this file. Using the Project tool window, navigate to the app -> res -> layout section of the FragmentExample project and double-click on the activity_fragment_example.xml file to load it into the Android Studio Layout Editor tool.
With the Layout Editor tool in Design mode, select and delete the default TextView object from the layout and select the Layouts category in the palette. Drag the <fragment> component from the list of layouts and drop it onto the layout so that it is centered horizontally and positioned such that the dashed line appears indicating the top layout margin:

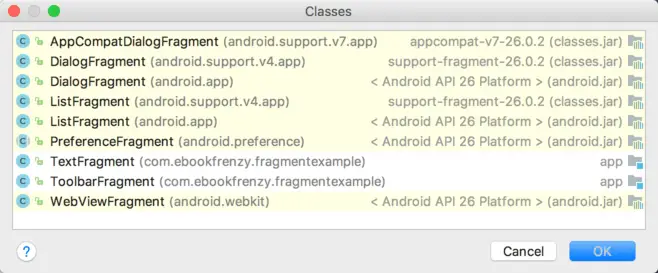

On dropping the fragment onto the layout, a dialog will appear displaying a list of Fragments available within the current project as illustrated in Figure 37-5:
Select the ToolbarFragment entry from the list and click on the OK button to dismiss the Fragments dialog. Once added, click on the red warning button in the top right-hand corner of the layout editor to display the warnings panel. An unknown fragments message (Figure 37-6) will be listed indicating that the Layout Editor tool needs to know which fragment to display during the preview session. Display the ToolbarFragment fragment by clicking on the Use @layout/toolbar_fragment link within the message:

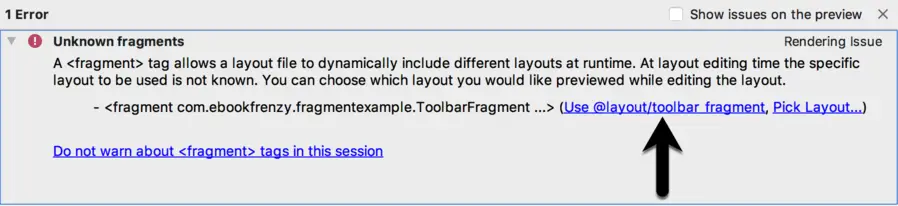

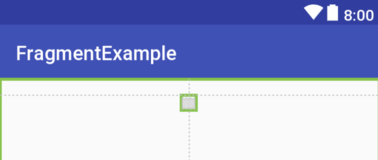

Click and drag another <fragment> entry from the panel and position it so that it is centered horizontally and positioned beneath the bottom edge of the first fragment. When prompted, select the TextFragment entry from the fragment dialog before clicking on the OK button. When the rendering message appears, click on the Use @layout/text_fragment option. Establish a constraint connection between the top edge of the TextFragment and the bottom edge of the ToolbarFragment.
Note that the fragments are now visible in the layout as demonstrated in Figure 37-7:
Before proceeding to the next step, select the TextFragment instance in the layout and, within the Attributes tool window, change the ID of the fragment to text_fragment.
Making the Toolbar Fragment Talk to the Activity
When the user touches the button in the toolbar fragment, the fragment class is going to need to get the text from the EditText view and the current value of the SeekBar and send them to the text fragment. As outlined in “An Introduction to Android Fragments”, fragments should not communicate with each other directly, instead using the activity in which they are embedded as an intermediary.
The first step in this process is to make sure that the toolbar fragment responds to the button being clicked. We also need to implement some code to keep track of the value of the SeekBar view. For the purposes of this example, we will implement these listeners within the ToolbarFragment class. Select the ToolbarFragment.kt file and modify it so that it reads as shown in the following listing:
package com.ebookfrenzy.fragmentexample
import android.os.Bundle
import android.support.v4.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import android.widget.SeekBar
import android.content.Context
import kotlinx.android.synthetic.main.toolbar_fragment.*
class ToolbarFragment : Fragment(), SeekBar.OnSeekBarChangeListener {
var seekvalue = 10
override fun onCreateView(inflater: LayoutInflater?,
container: ViewGroup?, savedInstanceState: Bundle?): View? {
// Inflate the layout for this fragment
val view = inflater?.inflate(R.layout.toolbar_fragment,
container, false)
val seekBar: SeekBar? = view?.findViewById(R.id.seekBar1)
val button: Button? = view?.findViewById(R.id.button1)
seekBar?.setOnSeekBarChangeListener(this)
button?.setOnClickListener { v: View -> buttonClicked(v)}
return view
}
private fun buttonClicked(view: View) {
}
override fun onProgressChanged(seekBar: SeekBar, progress: Int,
fromUser: Boolean) {
seekvalue = progress
}
override fun onStartTrackingTouch(arg0: SeekBar) {
}
override fun onStopTrackingTouch(arg0: SeekBar) {
}
}
Before moving on, we need to take some time to explain the above code changes. First, the class is declared as implementing the OnSeekBarChangeListener interface. This is because the user interface contains a SeekBar instance and the fragment needs to receive notifications when the user slides the bar to change the font size. Implementation of the OnSeekBarChangeListener interface requires that the onProgressChanged(), onStartTrackingTouch() and onStopTrackingTouch() methods be implemented. These methods have been implemented but only the onProgressChanged() method is actually required to perform a task, in this case storing the new value in a variable named seekvalue which has been declared at the start of the class. Also declared is a variable in which to store a reference to the EditText object.
The onCreateView() method has been modified to set up an onClickListener on the button which is configured to call a method named buttonClicked() when a click event is detected. This method is also then implemented, though at this point it does not do anything.
The next phase of this process is to set up the listener that will allow the fragment to call the activity when the button is clicked. This follows the mechanism outlined in the previous chapter:
class ToolbarFragment : Fragment(), SeekBar.OnSeekBarChangeListener {
var seekvalue = 10
var activityCallback: ToolbarFragment.ToolbarListener? = null
interface ToolbarListener {
fun onButtonClick(position: Int, text: String)
}
override fun onAttach(context: Context?) {
super.onAttach(context)
try {
activityCallback = context as ToolbarListener
} catch (e: ClassCastException) {
throw ClassCastException(context?.toString()
+ " must implement ToolbarListener")
}
}
override fun onCreateView(inflater: LayoutInflater?,
container: ViewGroup?, savedInstanceState: Bundle?): View? {
seekBar1.setOnSeekBarChangeListener(this)
button1.setOnClickListener { v: View -> buttonClicked(v)}
// Inflate the layout for this fragment
return inflater?.inflate(R.layout.toolbar_fragment,
container, false)
}
private fun buttonClicked(view: View) {
activityCallback?.onButtonClick(seekvalue,
editText1.text.toString())
}
.
.
}
The above implementation will result in a method named onButtonClick() belonging to the activity class being called when the button is clicked by the user. All that remains, therefore, is to declare that the activity class implements the newly created ToolbarListener interface and to implement the onButtonClick() method.
|
You are reading a sample chapter from the Android Studio 3.0 / Android 8 Edition book. Purchase the fully updated Android Studio Hedgehog Kotlin Edition of this publication in eBook or Print format Android Studio Hedgehog Essentials - Kotlin Edition eBook (PDF)/Print edition contains 94 chapters and over 830 pages
|
package com.ebookfrenzy.fragmentexample
import android.support.v4.app.FragmentActivity
import android.os.Bundle
class FragmentExampleActivity : FragmentActivity(),
ToolbarFragment.ToolbarListener {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_fragment_example)
}
override fun onButtonClick(fontsize: Int, text: String) {
}
}
With the code changes as they currently stand, the toolbar fragment will detect when the button is clicked by the user and call a method on the activity passing through the content of the EditText field and the current setting of the SeekBar view. It is now the job of the activity to communicate with the Text Fragment and to pass along these values so that the fragment can update the TextView object accordingly.
Making the Activity Talk to the Text Fragment
As outlined in “An Introduction to Android Fragments”, an activity can communicate with a fragment by obtaining a reference to the fragment class instance and then calling public methods on the object. As such, within the TextFragment class we will now implement a public method named changeTextProperties() which takes as arguments an integer for the font size and a string for the new text to be displayed. The method will then use these values to modify the TextView object. Within the Android Studio editing panel, locate and modify the TextFragment.kt file to add this new method and to add code to the onCreateView() method to obtain the ID of the TextView object:
package com.ebookfrenzy.fragmentexample
import android.os.Bundle
import android.support.v4.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import kotlinx.android.synthetic.main.text_fragment.*
class TextFragment : Fragment() {
override fun onCreateView(inflater: LayoutInflater?,
container: ViewGroup?,
savedInstanceState: Bundle?): View? {
return inflater?.inflate(R.layout.text_fragment,
container, false)
}
fun changeTextProperties(fontsize: Int, text: String)
{
textView1.textSize = fontsize.toFloat()
textView1.text = text
}
}
When the TextFragment fragment was placed in the layout of the activity, it was given an ID of text_fragment. Using this ID, it is now possible for the activity to obtain a reference to the fragment instance and call the changeTextProperties() method on the object. Edit the FragmentExampleActivity.kt file and modify the onButtonClick() method as follows:
override fun onButtonClick(fontsize: Int, text: String) {
val textFragment = supportFragmentManager.findFragmentById(
R.id.text_fragment) as TextFragment
textFragment.changeTextProperties(fontsize, text)
}
Testing the Application
With the coding for this project now complete, the last remaining task is to run the application. When the application is launched, the main activity will start and will, in turn, create and display the two fragments. When the user touches the button in the toolbar fragment, the onButtonClick() method of the activity will be called by the toolbar fragment and passed the text from the EditText view and the current value of the SeekBar. The activity will then call the changeTextProperties() method of the second fragment, which will modify the TextView to reflect the new text and font size:
Summary
The goal of this chapter was to work through the creation of an example project intended specifically to demonstrate the steps involved in using fragments within an Android application. Topics covered included the use of the Android Support Library for compatibility with Android versions predating the introduction of fragments, the inclusion of fragments within an activity layout and the implementation of inter-fragment communication.
|
You are reading a sample chapter from the Android Studio 3.0 / Android 8 Edition book. Purchase the fully updated Android Studio Hedgehog Kotlin Edition of this publication in eBook or Print format Android Studio Hedgehog Essentials - Kotlin Edition eBook (PDF)/Print edition contains 94 chapters and over 830 pages
|
