Working with iOS 10 Auto Layout Constraints in Interface Builder
Previous | Table of Contents | Next |
An Introduction to Auto Layout in iOS 10 | An iOS 10 Auto Layout Example |
Learn SwiftUI and take your iOS Development to the Next Level |
By far the most productive and intuitive way to work with constraints is to do so using the auto layout features of Interface Builder. Not only does this avoid the necessity to write time consuming code (though for complex layout requirements some code will be inevitable) but it also provides instant visual feedback on constraints as they are configured.
Within this chapter, a simple example will be used to demonstrate the effectiveness of Auto Layout together with an in-depth look at the Auto Layout features of Interface Builder. The chapter will then move on to demonstrate the concepts of content hugging and constraint priorities.
A Simple Example of Auto Layout in Action
Before digging deeper into the Auto Layout features of Interface Builder, the first step in this chapter will be to quickly demonstrate the basic concept of Auto Layout. Begin, therefore, by creating a new Xcode project using the Single View Application template, entering AutoLayoutExample as the product name and choosing Universal from the devices menu.
Enabling and Disabling Auto Layout in Interface Builder
By default, Auto Layout is switched on for user interface design files, both for storyboard and individual XIB files. Begin by selecting the Main.storyboard file from the project navigator panel and select the main scene (the main scene in a storyboard can be identified by the arrow pointing to the left side) before displaying the File Inspector panel (View -> Utilities-> Show File Inspector). Located within this inspector is an option labeled Use Auto Layout as illustrated in Figure 19-1.
Figure 19-1
Below the Use Auto Layout option is another item titled Use Trait Variations. Trait Variations enable different Auto Layout settings to be configured for different device screen sizes from within a single storyboard file. So that this chapter can focus solely on Auto Layout, and to avoid the confusion of learning two concepts at once, turn off the Use Trait Variations option for this project.

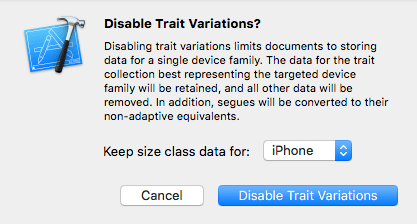

When the confirmation panel appears (Figure 19-2), verify that the Keep size class data for menu is set to iPhone before clicking on the Disable Trait Variations button. Rest assured that trait variations and their relationship to Auto Layout constraints will be covered in considerable detail in the chapter entitled Using Trait Variations to Design Adaptive iOS User Interfaces.
