As previously discussed in Drawing iOS 5 iPhone 2D Graphics with Quartz, the Quartz 2D API is the primary mechanism by which 2D drawing operations are performed within iOS 5 iPhone applications. Having provided an overview of Quartz 2D as it pertains to iOS development for the iPhone in that chapter, the focus of this chapter is to provide a tutorial that provides examples of how 2D drawing is performed. If you are new to Quartz 2D and have not yet read Drawing iOS 5 iPhone 2D Graphics with Quartz it is recommended that you do so now before embarking on this tutorial.
The iOS iPhone Drawing Example Application
The application created in this tutorial will contain a subclassed UIView component within which the drawRect method will be overridden and used to perform a variety of 2D drawing operations.
Creating the New Project
Create the new project by launching the Xcode development environment and selecting the option to create a new project. When prompted to select a template for the application, choose the Single View Application option and name the project and class prefix draw2D.
Creating the UIView Subclass
In order to draw graphics on the view it is necessary create a subclass of the UIView object and override the drawRect method. In the project navigator panel located on the left hand side of the main Xcode window Ctrl-click on the draw2D folder entry and select New File… from the resulting menu. In the New File window, select the Objective-C class icon and click Next. On the subsequent options screen, change the Subclass of: menu to UIView. Click Next once again and save the class as draw2D. Select the draw2DViewController.xib file and select the UIView component in the View object. Display the Identity Inspector (View -> Utilities -> Show Identity Inspector) and change the Class setting from UIView to our new class named draw2D:
Figure 41-1
Locating the drawRect Method in the UIView Subclass
Now that we have subclassed our application’s UIView the next step is to implement the drawRect method in this subclass. Fortunately Xcode has already created a template of this method for us. To locate this method, select the draw2D.m file in the project navigator panel of the main Xcode project window and scroll down the file contents in the edit pane until the drawRect method comes into view (it should be located immediately beneath the initWithFrame method). Having located the method in the file, remove the comment markers (/* and */) within which it is currently encapsulated:
#import "draw2D.h" @implementation draw2D - (id)initWithFrame:(CGRect)frame { if (self = [super initWithFrame:frame]) { // Initialization code } return self; } - (void)drawRect:(CGRect)rect { // Drawing code } . . @end
In the remainder of this tutorial we will modify the code in the drawRect method to perform a variety of different drawing operations.
Drawing a Line
In order to draw a line on an iPhone screen using Quartz 2D we first need to obtain the graphics context for the view:
CGContextRef context = UIGraphicsGetCurrentContext();
Once the context has been obtained, the width of the line we plan to draw needs to be specified:
CGContextSetLineWidth(context, 2.0);
Next, we need to create a color reference. We can do this by specifying the RGBA components of the required color (in this case opaque blue):
CGFloat components[] = {0.0, 0.0, 1.0, 1.0}; CGColorRef color = CGColorCreate(colorspace, components);
Using the color reference and the context we can now specify that the color is to be used when drawing the line:
CGContextSetStrokeColorWithColor(context, color);
The next step is to move to the start point of the line that is going to be drawn:
CGContextMoveToPoint(context, 0, 0);
The above line of code indicates that the start point for the line is the top left hand corner of the device display. We now need to specify the end point of the line, in this case 300, 400:
CGContextAddLineToPoint(context, 300, 400);
Having defined the line width, color and path, we are ready to draw the line and release the colorspace and color reference objects:
CGContextStrokePath(context); CGColorSpaceRelease(colorspace); CGColorRelease(color);
Bringing this all together gives us a drawRect method that reads as follows:
- (void)drawRect:(CGRect)rect { CGContextRef context = UIGraphicsGetCurrentContext(); CGContextSetLineWidth(context, 5.0); CGColorSpaceRef colorspace = CGColorSpaceCreateDeviceRGB(); CGFloat components[] = {0.0, 0.0, 1.0, 1.0}; CGColorRef color = CGColorCreate(colorspace, components); CGContextSetStrokeColorWithColor(context, color); CGContextMoveToPoint(context, 0, 0); CGContextAddLineToPoint(context, 300, 400); CGContextStrokePath(context); CGColorSpaceRelease(colorspace); CGColorRelease(color); }

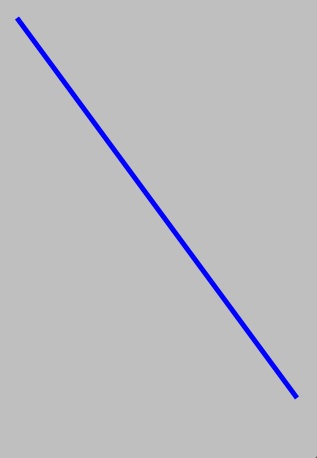

When compiled and run, the application should display as illustrated in Figure 41 2:
Figure 41-2
Note that in the above example we manually created the colorspace and color reference. As described in Drawing iOS 5 iPhone 2D Graphics with Quartz colors can also be created using the UIColor class. For example, the same result as outlined above can be achieved with fewer lines of code as follows:
- (void)drawRect:(CGRect)rect { CGContextRef context = UIGraphicsGetCurrentContext(); CGContextSetLineWidth(context, 2.0); CGContextSetStrokeColorWithColor(context, [UIColor blueColor].CGColor); CGContextMoveToPoint(context, 0, 0); CGContextAddLineToPoint(context, 300, 400); CGContextStrokePath(context); }
Drawing Paths
As you may have noticed, in the above example we draw a single line by essentially defining the path between two points. Defining a path that comprises multiple points allows us to draw using a sequence of straight lines all connected to each other using repeated calls to the CGContextAddLineToPoint() function. Non-straight lines may also be added to a shape using calls to, for example, the CGContextAddArc() function.
The following code, for example, draws a diamond shape:
- (void)drawRect:(CGRect)rect { CGContextRef context = UIGraphicsGetCurrentContext(); CGContextSetLineWidth(context, 4.0); CGContextSetStrokeColorWithColor(context, [UIColor blueColor].CGColor); CGContextMoveToPoint(context, 100, 100); CGContextAddLineToPoint(context, 150, 150); CGContextAddLineToPoint(context, 100, 200); CGContextAddLineToPoint(context, 50, 150); CGContextAddLineToPoint(context, 100, 100); CGContextStrokePath(context); }
When executed, the above code should produce output that appears shown in Figure 41-3:
Figure 41-3
Drawing a Rectangle
Rectangles are drawn in much the same way as any other path is drawn, with the exception that the path is defined by specifying the x and y co-ordinates of the top left hand corner of the rectangle together with the rectangle’s height and width. These dimensions are stored in a CGRect structure and passed through as an argument to the CGContextAddRect function:
- (void)drawRect:(CGRect)rect { CGContextRef context = UIGraphicsGetCurrentContext(); CGContextSetLineWidth(context, 4.0); CGContextSetStrokeColorWithColor(context, [UIColor blueColor].CGColor); CGRect rectangle = CGRectMake(60,170,200,80); CGContextAddRect(context, rectangle); CGContextStrokePath(context); }
The above code will result in the following display when compiled and executed:
Figure 41-4
Drawing an Ellipse or Circle
Circles and ellipses are drawn by defining the rectangular area into which the shape must fit and then calling the CGContextAddEllipseInRect() function:
- (void)drawRect:(CGRect)rect { CGContextRef context = UIGraphicsGetCurrentContext(); CGContextSetLineWidth(context, 4.0); CGContextSetStrokeColorWithColor(context, [UIColor blueColor].CGColor); CGRect rectangle = CGRectMake(60,170,200,80); CGContextAddEllipseInRect(context, rectangle); CGContextStrokePath(context); }

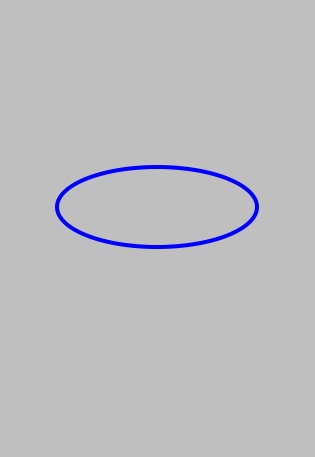

When compiled, the above code will produce the following graphics:
Figure 41-5
In order to draw a circle simply define a rectangle with equal length sides (a square in other words).
Filling a Path with a Color
A path may be filled with a color using a variety of Quartz 2D API functions. Rectangular and elliptical paths may be filled using the CGContextFillRect() and CGContextFillEllipse() functions respectively. Similarly, a path may be filled using the CGContextFillPath() function. Prior to executing a fill operation, the fill color must be specified using the CGContextSet-FillColorWithColor() function.
The following example defines a path and then fills it with the color red:
- (void)drawRect:(CGRect)rect { CGContextRef context = UIGraphicsGetCurrentContext(); CGContextMoveToPoint(context, 100, 100); CGContextAddLineToPoint(context, 150, 150); CGContextAddLineToPoint(context, 100, 200); CGContextAddLineToPoint(context, 50, 150); CGContextAddLineToPoint(context, 100, 100); CGContextSetFillColorWithColor(context, [UIColor redColor].CGColor); CGContextFillPath(context); }
The above code produces the following graphics on the device or simulator display when executed:
Figure 41-6
The following code draws a rectangle with a blue border and then once again fills the rectangular space with red:
- (void)drawRect:(CGRect)rect { CGContextRef context = UIGraphicsGetCurrentContext(); CGContextSetLineWidth(context, 4.0); CGContextSetStrokeColorWithColor(context, [UIColor blueColor].CGColor); CGRect rectangle = CGRectMake(60,170,200,80); CGContextAddRect(context, rectangle); CGContextStrokePath(context); CGContextSetFillColorWithColor(context, [UIColor redColor].CGColor); CGContextFillRect(context, rectangle); } When added to the example application, the resulting display should appear as follows: [[Image:iphone_ios_5_draw_filled_border.jpg|A filled rectangle with a border drawn on an iPhone]] Figure 41-7 == Drawing an Arc == An arc may be drawn by specifying two tangent points and a radius using the CGContextAddArcToPoint() function, for example: <pre> - (void)drawRect:(CGRect)rect { CGContextRef context = UIGraphicsGetCurrentContext(); CGContextSetLineWidth(context, 4.0); CGContextSetStrokeColorWithColor(context, [UIColor blueColor].CGColor); CGContextMoveToPoint(context, 100, 100); CGContextAddArcToPoint(context, 100,200, 300,200, 100); CGContextStrokePath(context); }
The above code will result in the following graphics output:

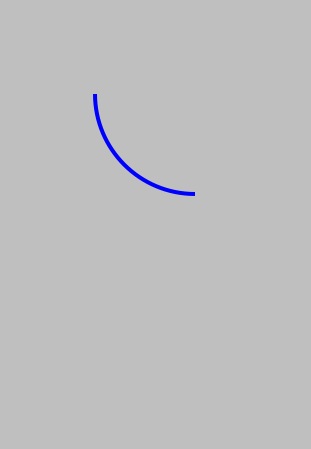

Figure 41-8
Drawing a Cubic Bézier Curve
A cubic Bézier curve may be drawn by moving to a start point and then passing two control points and an end point through to the CGContextAddCurveToPoint() function:
- (void)drawRect:(CGRect)rect { CGContextRef context = UIGraphicsGetCurrentContext(); CGContextSetLineWidth(context, 4.0); CGContextSetStrokeColorWithColor(context, [UIColor blueColor].CGColor); CGContextMoveToPoint(context, 10, 10); CGContextAddCurveToPoint(context, 0, 50, 300, 250, 300, 400); CGContextStrokePath(context); }

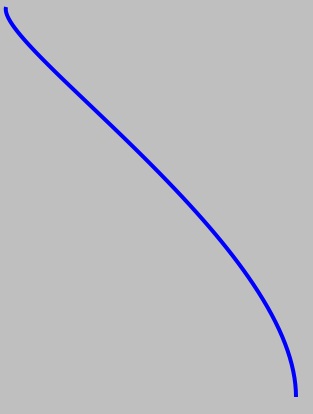

The above code will cause the curve illustrated in Figure 41-9 to be drawn when compiled and executed in our example application:
Figure 41-9
Drawing a Quadratic Bézier Curve
A quadratic Bézier curve is drawn using the CGContextAddQuadCurveToPoint() function, providing a control and end point as arguments having first moved to the start point:
- (void)drawRect:(CGRect)rect { CGContextRef context = UIGraphicsGetCurrentContext(); CGContextSetLineWidth(context, 4.0); CGContextSetStrokeColorWithColor(context, [UIColor blueColor].CGColor); CGContextMoveToPoint(context, 10, 200); CGContextAddQuadCurveToPoint(context, 150, 10, 300, 200); CGContextStrokePath(context); }
The above code, when executed, will display a curve that appears as illustrated in the following figure:
Figure 41-10
Dashed Line Drawing
So far in this chapter we have performed all our drawing with a solid line. Quartz also provides support for drawing dashed lines. This is achieved via the Quartz CGContextSetLineDash() function which takes as its arguments the following:
- context – The graphics context of the view on which the drawing is to take place
- phase - A floating point value that specifies how far into the dash pattern the line starts
- lengths – An array containing values for the lengths of the painted and unpainted sections of the line. For example an array containing 5 and 6 would cycle through 5 painted unit spaces followed 6 unpainted unit spaces.
- count – A count of the number of items in the lengths array
For example, a [2,6,4,2] lengths array applied to a curve drawing of line thickness 5.0 will appear as follows:
Figure 41-11
The corresponding drawRect code that drew the above line reads as follows:
- (void)drawRect:(CGRect)rect { CGContextRef context = UIGraphicsGetCurrentContext(); CGContextSetLineWidth(context, 20.0); CGContextSetStrokeColorWithColor(context, [UIColor blueColor].CGColor); CGFloat dashArray[] = {2,6,4,2}; CGContextSetLineDash(context, 3, dashArray, 4); CGContextMoveToPoint(context, 10, 200); CGContextAddQuadCurveToPoint(context, 150, 10, 300, 200); CGContextStrokePath(context); }
Drawing an Image into a Graphics Context
An image may be drawn into a graphics context either by specifying the coordinates of the top left hand corner of the image (in which case the image will appear full size) or resized so that it fits into a specified rectangular area. Before we can display an image in our example application, however, that image must first be added to the project resources.
Begin by locating the desired image using the Finder and then drag and drop that image onto the Resources category of the project navigator panel of the Xcode main project window.
The following example drawRect method code displays the image full size located at 0, 0:
- (void)drawRect:(CGRect)rect { UIImage *myImage = [UIImage imageNamed:@"pumpkin.jpg"]; CGPoint imagePoint = CGPointMake(0, 0); [myImage drawAtPoint:imagePoint]; }
As is evident when the application is run, the size of the image far exceeds the available screen size:
Figure 41-12
Using the drawInRect method of the UIImage object, however, we can scale the image to fit better on the screen. In this instance it is useful to identify the screen size since this changes depending on the device on which the application is running. This can be achieved using the mainScreen and bounds methods of the UIScreen class. The mainScreen method returns another UIScreen object representing the device display. Calling the bounds method of that object returns the dimensions of the display in the form of a CGRect object:
- (void)drawRect:(CGRect)rect { UIImage *myImage = [UIImage imageNamed:@"pumpkin.jpg"]; CGRect imageRect =[[UIScreen mainScreen] bounds]; [myImage drawInRect:imageRect]; }
This time, the entire image fits comfortably on the screen:
Figure 41-13
Image Filtering with the Core Image Framework
Having covered the concept of displaying images within an iPhone application now is a good time to provide a basic overview of the Core Image Framework.
Core Image was introduced with iOS 5 and provides a mechanism for filtering and manipulating still images and videos. Included with Core Image is a wide range of different filters together with the ability to build custom filters to meet specific requirements. Examples of filters that may be applied include cropping, color effects, blurring, warping, transformations and gradients. A full listing of filters is available in Apple’s Core Image Filter Reference document which is located in the iOS Developer portal.
A CIImage object is typically initialized with a reference to the image to be manipulated. A CIFilter object is then created and configured with the type of filtering to be performed, together with any input parameters required by that filter. The CIFilter object is then instructed to perform the operation and the modified image is subsequently returned in the form of a CIImage object. The application’s CIContext reference may then be used to render the image for display to the user.
By way of an example of Core Image in action we will modify the drawRect method of our draw2D example application to render the previously displayed image in a sepia tone using the CISepiaTone filter. This is achieved by selecting the draw2D target at the top of the project navigator and then selecting the Build Phases tab in the main panel. Unfold the Link Binary with Libraries section of the panel, click on the + button and locate and add the CoreImage.framework library from the resulting list.
Having added the framework, select the draw2D.m file and modify drawRect as follows:
- (void)drawRect:(CGRect)rect { // Drawing code UIImage *myimage = [UIImage imageNamed:@"pumpkin.jpg"]; CIImage *cimage = [[CIImage alloc] initWithImage:myimage]; CIFilter *sepiaFilter = [CIFilter filterWithName:@"CISepiaTone"]; [sepiaFilter setDefaults]; [sepiaFilter setValue:cimage forKey:@"inputImage"]; [sepiaFilter setValue:[NSNumber numberWithFloat:0.8f] forKey:@"inputIntensity"]; CIImage *image = [sepiaFilter outputImage]; CIContext *context = [CIContext contextWithOptions: nil]; CGImageRef cgImage = [context createCGImage: image fromRect: image.extent]; UIImage *resultUIImage = [UIImage imageWithCGImage: cgImage]; CGRect imageRect =[[UIScreen mainScreen] bounds]; [resultUIImage drawInRect:imageRect]; }
The method begins by loading the image .jpg file used in the previous section of this chapter. Since Core Image works on CIImage objects it is then necessary to convert the UIImage to a CIImage. Next a new CIFilter object is created and initialized with the CISepiaTone filter. The filter is then set to the default settings before being configured with the input image (in this case our cimage object) and the value of intensity of the filter (0.8).
With the filter object configured, its outputFile method is called to perform the manipulation and the resulting modified image assigned to a new CImage object. The CIContext reference for the application is then obtained and used to convert the CImage object to a CGImageRef object. This, in turn, is converted to a UIImage object which is then displayed to the user using the object’s drawInRect method. When compiled and run the image will appear in a sepia tone.
Summary
By subclassing the UIView class and overriding the drawRect method a variety of 2D graphics drawing functions may be performed on the view canvas. In this chapter we have explored some of the graphics drawing capabilities of Quartz 2D to draw a variety of line types and paths and to present images on the iPhone screen.
New in iOS 5 is the Core Image framework, designed specifically for the filtering and manipulation of images and video. In this chapter we have provided a brief overview of Core Image and worked through a simple example that applied a sepia tone filter to an image.
