In the course of developing Android apps it will be necessary to compile and run an application multiple times. An Android application may be tested by installing and running it either on a physical device or in an Android Virtual Device (AVD) emulator environment. Before an AVD can be used, it must first be created and configured to match the specification of a particular device model. The goal of this chapter, therefore, is to work through the steps involved in creating such a virtual device using the Nexus 7 tablet as a reference example.
About Android Virtual Devices
AVDs are essentially emulators that allow Android applications to be tested without the necessity to install the application on a physical Android based device. An AVD may be configured to emulate a variety of hardware features including options such as screen size, memory capacity and the presence or otherwise of features such as a camera, GPS navigation support or an accelerometer. As part of the installation process outlined in the previous chapter, a number of emulator template definitions were installed allowing AVDs to be configured for a range of different devices. Additional templates may be loaded or custom configurations created to match any physical Android device by specifying properties such as process type, memory capacity, screen size and density. Check the online developer documentation for your device to find out if emulator definitions are available for download and installation into the ADT environment.
When launched, an AVD will appear as a window containing an emulated Android device environment. Figure 3-1, for example, shows an AVD session configured to emulate the Google Nexus 7 device.
New AVDs are created and managed using the Android Virtual Device Manager, which may be used either in command-line mode or with a more user-friendly graphical user interface.
Figure 3-1
Creating a New AVD
In order to test the behavior of an application, it will be necessary to create an AVD for an Android device configuration.
To create a new AVD, the first step is to launch the AVD Manager. This can be achieved from within the Eclipse environment using the Window -> Android Virtual Device Manager menu option. Alternatively, the tool may be launched from the command-line using the following command:
android avd
Once launched, the tool will appear as outlined in Figure 3-2. Assuming a new Android SDK installation, no AVDs will currently be listed:
Figure 3-2
Begin the AVD creation process by clicking on the New… button in order to invoke the Create a New Android Virtual Device (AVD) dialog. Within the dialog, perform the following steps to create a Nexus 7 compatible emulator:
1. Enter a descriptive name (for example Nexus7) into the name field. Note that spaces and other special characters are not permitted in the name.
2. Set the Device menu to Nexus 7 (7.27” 800 x 1280: tvhdpi).
3. Set the Target menu to Android 4.2.2 – API Level 17.
4. Set the CPU/ABI menu to ARM (armeabi-v7a).
5. Leave the default RAM value in Memory Options and the Internal Storage value unchanged from the default settings. Keep in mind however, that it may be necessary to reduce the RAM value below 768M on Windows systems with less available memory.
6. If the host computer contains a web cam the Front Camera: emulation may be configured to use this camera. Alternatively, an emulated camera may be selected. If camera functionality is not required by the application, simply leave this set to None.
|
You are currently reading the Android Studio 1.x - Android 5 Edition of this book. Purchase the fully updated Android Studio Hedgehog Edition of this publication in eBook ($32.99) or Print ($49.99) format Android Studio Hedgehog Essentials - Java Edition Print and eBook (PDF) editions contain 87 chapters and over 800 pages
|
Whether or not you enable the Hardware Keyboard and Display skin with hardware controls options is optional. When the hardware keyboard option is selected, it will be possible to use the physical keyboard on the system on which the emulator is running. As such, the Android software keyboard will not appear within the emulator.
The skin with hardware controls option controls whether or not buttons appear as part of the emulator to simulate the hardware buttons present on the sides of the physical Android device.
Note that it may also be possible to speed the performance of the emulator by enabling the Use Host GPU option. In the event that the emulator crashes during startup when this option is selected, edit the virtual device properties and disable this option.

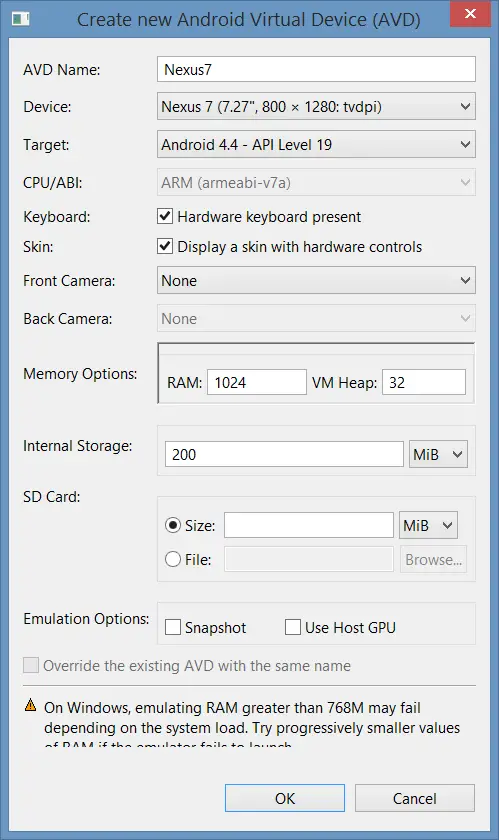

Figure 3-3 illustrates the dialog with the appropriate settings implemented for a Nexus 7 emulator. Once the configuration settings are complete, click on the OK button.
Figure 3-3
With the AVD created, the AVD Manager may now be closed. If future modifications to the AVD are necessary, simply re-open the AVD Manager, select the AVD from the list and click on the Edit… button.
Starting the Emulator
Once fully loaded, the emulator will display the standard Android lock screen.
AVD Command-line Creation
As previously discussed, in addition to the graphical user interface it is also possible to create a new AVD directly from the command-line. This is achieved using the android tool in conjunction with some command-line options. Once initiated, the tool will prompt for additional information before creating the new AVD.
Assuming that the system has been configured such that the Android SDK tools directory is included in the PATH environment variable, a list of available targets for the new AVD may be obtained by issuing the following command in a terminal or command window:
android list targets
The resulting output from the above command will contain a list of Android SDK versions that are available on the system. For example:
Available Android targets:
----------
id: 1 or "android-19"
Name: Android 4.4
Type: Platform
API level: 19
Revision: 1
Skins: HVGA, QVGA, WQVGA400, WQVGA432, WSVGA, WVGA800 (default), WVGA854, WXGA720, WXGA800, WXGA800-7in
ABIs : armeabi-v7a
The syntax for AVD creation is as follows:
android create avd -n <name> -t <targetID> [-<option> <value>]
For example, to create a new AVD named Nexus7 using the target id for the Android 4.4 API level 19 device (in this case id 1), the following command may be used:
android create avd -n Nexus7 -t 1
The android tool will create the new AVD to the specifications required for a basic Android 4.4 device, also providing the option to create a custom configuration to match the specification of a specific device if required. Once a new AVD has been created from the command line, it may not show up in the Android Device Manager tool until the Refresh button is clicked.
In addition to the creation of new AVDs, a number of other tasks may be performed from the command line. For example, a list of currently available AVDs may be obtained using the list avd command line arguments:
android list avd
C:\Users\nas>android list avd
Available Android Virtual Devices:
---------
Name: KindleFireHD7
Path: C:\Users\nas\.android\avd\KindleFireHD7.avd
Target: Kindle Fire HD 7" (Amazon)
Based on Android 4.0.3 (API level 15)
ABI: armeabi-v7a
Skin: 800x1280
---------
Name: Nexus7
Path: C:\Users\nas\.android\avd\Nexus7.avd
Target: Android 4.4 (API level 19)
ABI: armeabi-v7a
Skin: 800x1280
---------
Name: Nexus7Google
Path: C:\Users\nas\.android\avd\Nexus7Google.avd
Target: Google APIs (Google Inc.)
Based on Android 4.2.2 (API level 17)
ABI: armeabi-v7a
Skin: 800x1280
Similarly, to delete an existing AVD, simply use the delete option as follows:
android delete avd –name <avd name>
Android Virtual Device Configuration Files
By default, the files associated with an AVD are stored in the .android/avd sub-directory of the user’s home directory, the structure of which is as follows (where <avd name> is replaced by the name assigned to the AVD):
<avd name>.avd/config.ini <avd name>.avd/userdata.img <avd name>.ini
The config.ini file contains the device configuration settings such as display dimensions and memory specified during the AVD creation process. These settings may be changed directly within the configuration file and will be adopted by the AVD when it is next invoked.
The <avd name>.ini file contains a reference to the target Android SDK and the path to the AVD files. Note that a change to the image.sysdir value in the config.ini file will also need to be reflected in the target value of this file.
Moving and Renaming an Android Virtual Device
The current name or the location of the AVD files may be altered from the command line using the android tool’s move avd argument. For example, to rename an AVD named Nexus7 to Nexus7B, the following command may be executed:
android move avd -n Nexus7 -r Nexus7B
To physically relocate the files associated with the AVD, the following command syntax should be used:
android move avd -n <avd name> -p <path to new location>
For example, to move an AVD from its current file system location to /tmp/Nexus7Test:
android move avd -n Nexus7 -p /tmp/Nexus7Test
Note that the destination directory must not already exist prior to executing the command to move an AVD.
Summary
A typical application development process follows a cycle of coding, compiling and running in a test environment. Android applications may be tested on either a physical Android device or using an Android Virtual Device (AVD) emulator. AVDs are created and managed using the Android AVD Manager tool which may be used either as a command line tool or using a graphical user interface. When creating an AVD to simulate a specific Android device model it is important that the virtual device be configured with a hardware specification that matches that of the physical device.
Now that we have created and configured an AVD, the next step is to create a simple application and run it within the AVD.
|
