Before any work can begin on the development of an Android application, the first step is to configure a computer system to act as the development platform. This involves a number of steps consisting of installing the Java Development Kit (JDK) and the Android Studio Integrated Development Environment (IDE) which also includes the Android Software Development Kit (SDK).

This chapter will cover the steps necessary to install the requisite components for Android application development on Windows, Mac OS X and Linux based systems.




System Requirements

Android application development may be performed on any of the following system types:

  • Windows 2003 (32-bit or 64-bit)
  • Windows Vista (32-bit or 64-bit)
  • Windows 7 (32-bit or 64-bit)
  • Windows 8 / Windows 8.1
  • Mac OS X 10.5.8 or later (Intel based systems only)
  • Linux systems with version 2.11 or later of GNU C Library (glibc)
  • Minimum of 2GB of RAM (4GB is preferred)
  • 1.5GB of available disk space

Installing the Java Development Kit (JDK)

The Android SDK was developed using the Java programming language. Similarly, Android applications are also developed using Java. As a result, the Java Development Kit (JDK) is the first component that must be installed.

Android development requires the installation of either version 6 or 7 of the Standard Edition of the Java Platform Development Kit. Java is provided in both development (JDK) and runtime (JRE) packages. For the purposes of Android development, the JDK must be installed.


Windows JDK Installation

For Windows systems, the JDK may be obtained from Oracle Corporation’s website using the following URL:

http://www.oracle.com/technetwork/java/javase/downloads/index.html

Assuming that a suitable JDK is not already installed on your system, download the latest JDK package that matches the destination computer system. Once downloaded, launch the installation executable and follow the on screen instructions to complete the installation process.

Mac OS X JDK Installation

Java is not installed by default on recent versions of Mac OS X. To confirm the presence or otherwise of Javae version that is installed, open a Terminal window and enter the following command:

java -version

Assuming that Java is currently installed, output similar to the following will appear in the terminal window:

java version "1.7.0_71"
Java(TM) SE Runtime Environment (build 1.7.0_71-b14)
Java HotSpot(TM) 64-Bit Server VM (build 24.71-b01, mixed mode)

In the event that Java is not installed, issuing the “java” command in the terminal window will result in the appearance of a message which reads as follows together with a dialog on the desktop a More Info button which, when clicked will display the Oracle Java web page:

No Java runtime present, requesting install

Open the downloaded disk image (.dmg file) and double- click on the icon to install the Java package (Figure 2-1):

Installing Java on Mac OS X

Figure 2-1


The Java for OS X installer window will appear and take you through the steps involved in installing the JDK. Once the installation is complete, return to the Terminal window and run the following command, at which point the previously outlined Java version information should appear:

java -version

Linux JDK Installation

Firstly, if the chosen development system is running the 64-bit version of Ubuntu then it is essential that the 32-bit library support package be installed:

sudo apt-get install ia32-libs

As with Windows based JDK installation, it is possible to install the JDK on Linux by downloading the appropriate package from the Oracle web site, the URL for which is as follows: http://www.oracle.com/technetwork/java/javase/downloads/index.html Packages are provided by Oracle in RPM format (for installation on Red Hat Linux based systems such as Red Hat Enterprise Linux, Fedora and CentOS) and as a tar archive for other Linux distributions such as Ubuntu.

On Red Hat based Linux systems, download the .rpm JDK file from the Oracle web site and perform the installation using the rpm command in a terminal window. Assuming, for example, that the downloaded JDK file was named jdk-7u45-linux-x64.rpm, the commands to perform the installation would read as follows:

su
rpm –ihv jdk-7u45-linux-x64.rpm

To install using the compressed tar package (tar.gz) perform the following steps:

1. Create the directory into which the JDK is to be installed (for the purposes of this example we will assume /home/demo/java). 2. Download the appropriate tar.gz package from the Oracle web site into the directory. 3. Execute the following command (where <jdk-file> is replaced by the name of the downloaded JDK file):

tar xvfz  <jdk-file>.tar.gz

4. Remove the downloaded tar.gz file. 5. Add the path to the bin directory of the JDK installation to your $PATH variable. For example, assuming that the JDK ultimately installed into /home/demo/java/jdk1.7.0_45 the following would need to be added to your $PATH environment variable:

/home/demo/java/jdk1.7.0_45/bin

This can typically be achieved by adding a command to the .bashrc file in your home directory (specifics may differ depending on the particular Linux distribution in use). For example, change directory to your home directory, edit the .bashrc file contained therein and add the following line at the end of the file (modifying the path to match the location of the JDK on your system):

export PATH=/home/demo/java/jdk1.7.0_45/bin:$PATH

Having saved the change, future terminal sessions will include the JDK in the $PATH environment variable.

Downloading the Android Studio Package

Most of the work involved in developing applications for Android will be performed using the Android Studio environment. Android Studio may be downloaded from the following web page:

http://developer.android.com/sdk/index.html

From this page, either click on the download button if it lists the correct platform (for example on a Windows based web browser the button will read “Download Android Studio for Windows”), or select the “Other Download Options” link to manually select the appropriate package for your platform and operating system. On the subsequent screen, accept the terms and conditions to initiate the download.

Installing Android Studio

Once downloaded, the exact steps to install Android Studio differ depending on the operating system on which the installation is being performed.

Installation on Windows

Locate the downloaded Android Studio installation executable file (named android-studio-bundle-<version>.exe) in a Windows Explorer window and double click on it to start the installation process, clicking the Yes button in the User Account Control dialog if it appears.

Once the Android Studio setup wizard appears, work through the various screens to configure the installation to meet your requirements in terms of the file system location into which Android Studio should be installed and whether or not it should be made available to other users of the system. Although there are no strict rules on where Android Studio should be installed on the system, the remainder of this book will assume that the installation was performed into a sub-folder of the user’s home directory named android-studio. Once the options have been configured, click on the Install button to begin the installation process.

On versions of Windows with a Start menu, the newly installed Android Studio can be launched from the entry added to that menu during the installation. On Windows 8, the executable can be pinned to the task bar for easy access by navigating to the android-studio\bin directory, right clicking on the executable and selecting the Pin to Taskbar menu option. Note that the executable is provided in 32-bit (studio) and 64-bit (studio64) executable versions. If you are running a 32-bit system be sure to use the studio executable.

Installation on Mac OS X

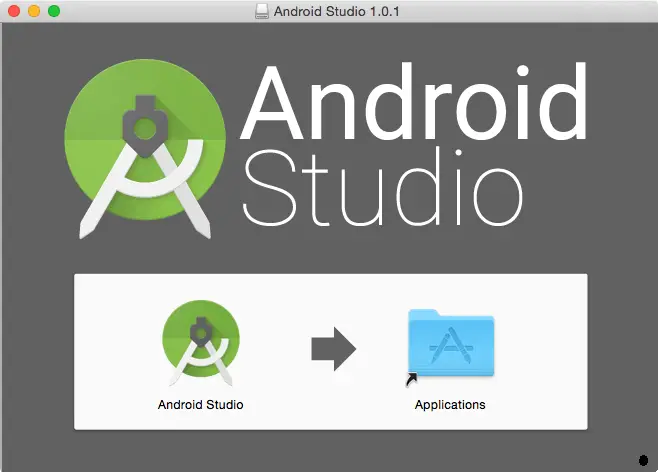

Android Studio for Mac OS X is downloaded in the form of a disk image (.dmg) file. Once the android-studio-ide-<version>.dmg file has been downloaded, locate it in a Finder window and double click on it to open it as shown in Figure 2-2:

Installing Android Studio on Mac OS X

Figure 2-2


To install the package, simply drag the Android Studio icon and drop it onto the Applications folder. The Android Studio package will then be installed into the Applications folder of the system, a process which will typically take a few minutes to complete.

To launch Android Studio, locate the executable in the Applications folder using a Finder window and double click on it. When attempting to launch Android Studio, an error dialog may appear indicating that the JVM cannot be found. If this error occurs, it will be necessary to download and install the Mac OS X Java 6 JRE package on the system. This can be downloaded from Apple using the following link:

http://support.apple.com/kb/DL1572

Once the Java for OS X package has been installed, Android Studio should launch without any problems.

For future easier access to the tool, drag the Android Studio icon from the Finder window and drop it onto the dock.

You are currently reading the Android Studio 1.x - Android 5 Edition of this book.

Purchase the fully updated Android Studio 2.3 / Android 7 Edition of this publication in eBook ($19.99) or Print ($45.99) format

Android Studio 2.3 Development Essentials - Android 7 Edition Print and eBook (ePub/PDF/Kindle) editions contain 77 chapters and over 810 pages

Buy eBook Buy Print Preview Book

Installation on Linux

Having downloaded the Linux Android Studio package, open a terminal window, change directory to the location where Android Studio is to be installed and execute the following command:

unzip /<path to package>/android-studio-ide-<version>-linux.zip

Note that the Android Studio bundle will be installed into a sub-directory named android-studio. Assuming, therefore, that the above command was executed in /home/demo, the software packages will be unpacked into /home/demo/android-studio.

To launch Android Studio, open a terminal window, change directory to the android-studio/bin sub-directory and execute the following command:

./studio.sh

The Android Studio Setup Wizard

The first time that Android Studio is launched after being installed, a dialog will appear providing the option to import settings from a previous Android Studio version. If you have settings from a previous version and would like to import them into the latest installation, select the appropriate option and location. Alternatively, indicate that you do not need to import any previous settings and click on the OK button to proceed.

After Android Studio has finished loading, the setup wizard will appear as shown in Figure 2-3.


the Android Studio setup wizard

Figure 2-3


Click on the Next button, choose the Standard installation option and click on Next once again. On the license agreement screen, select and accept each of the licenses listed before clicking on Finish to complete the setup process. The Welcome to Android Studio screen should then appear:


Welcome to Android Studio

Figure 2-4

Installing the Latest Android SDK Packages

The steps performed so far have installed Java, the Android Studio IDE and the current set of default Android SDK packages. Before proceeding, it is worth taking some time to verify which packages are installed and to install any missing packages.

This task can be performed using the Android SDK Manager, which may be launched from within the Android Studio tool by selecting the Configure -> SDK Manager option from within the Android Studio welcome dialog. Once invoked, the SDK Manager tool will appear as illustrated in Figure 2-3:


The Android SDK Manager launched from Android Studio

Figure 2-5


Within the Android SDK Manager, make sure that the check boxes next to the following packages are listed as Installed in the Status column:

  • Tools > Android SDK Tools
  • Tools > Android SDK Platform-tools
  • Tools > Android SDK Build-tools
  • SDK Platform (most recent version)> SDK Platform
  • SDK Platform (most recent version) > ARM EABI v7a System Image
  • Extras -> Android Support Repository
  • Extras > Android Support Library
  • Extras -> Google Repository
  • Extras -> Google USB Driver (Required on Windows systems only)
  • Extras > Intel x86 Emulator Accelerator (HAXM installer)


In the event that any of the above packages are listed as Not Installed, simply select the checkboxes next to those packages and click on the Install packages button to initiate the installation process. In the resulting dialog, accept the license agreements before clicking on the Install button. The SDK Manager will then begin to download and install the designated packages. As the installation proceeds, a progress bar will appear at the bottom of the manager window indicating the status of the installation.

Once the installation is complete, review the package list and make sure that the selected packages are now listed as Installed in the Status column. If any are listed as Not installed, make sure they are selected and click on the Install packages… button again.

Making the Android SDK Tools Command-line Accessible

Most of the time, the underlying tools of the Android SDK will be accessed from within the Android Studio environment. That being said, however, there will also be instances where it will be useful to be able to invoke those tools from a command prompt or terminal window. In order for the operating system on which you are developing to be able to find these tools, it will be necessary to add them to the system’s PATH environment variable.

Regardless of operating system, the PATH variable needs to be configured to include the following paths (where <path_to_android_sdk_installation> represents the file system location into which the SDK was installed):

<path_to_android_sdk_installation>/sdk/tools
<path_to_android_sdk_installation>/sdk/platform-tools

The location of the SDK on your system can be identified by launching the SDK Manager and referring to the SDK Path: field located at the top of the manager window as highlighted in Figure 2-6:


The Android SDK installation path

Figure 2-6


Once the location of the SDK has been identified, the steps to add this to the PATH variable are operating system dependent:

Windows 7

1. Right click on Computer in the desktop start menu and select Properties from the resulting menu. 2. In the properties panel, select the Advanced System Settings link and, in the resulting dialog, click on the Environment Variables… button. 3. In the Environment Variables dialog, locate the Path variable in the System variables list, select it and click on Edit…. Locate the end of the current variable value string and append the path to the android platform tools to the end, using a semicolon to separate the path from the preceding values. For example, assuming Android Studio was installed into C:\Users\demo\AppData\Local\Android\sdk, the following would be appended to the end of the current Path value:

;C:\Users\demo\AppData\Local\Android\sdk\platform-tools;C:\Users\demo\AppData\Local\Android\sdk\tools

4. Click on OK in each dialog box and close the system properties control panel. Once the above steps are complete, verify that the path is correctly set by opening a Command Prompt window (Start -> All Programs -> Accessories -> Command Prompt) and at the prompt enter:

echo %Path%

The returned path variable value should include the paths to the Android SDK platform tools folders. Verify that the platform-tools value is correct by attempting to run the adb tool as follows:

adb

The tool should output a list of command line options when executed.

Similarly, check the tools path setting by attempting to launch the Android SDK Manager:

android

In the event that a message similar to the following message appears for one or both of the commands, it is most likely that an incorrect path was appended to the Path environment variable:

'adb' is not recognized as an internal or external command,
operable program or batch file.

Windows 8.1

1. On the start screen, move the mouse to the bottom right hand corner of the screen and select Search from the resulting menu. In the search box, enter Control Panel. When the Control Panel icon appears in the results area, click on it to launch the tool on the desktop. 2. Within the Control Panel, use the Category menu to change the display to Large Icons. From the list of icons select the one labeled System. 3. Follow the steps outlined for Windows 7 starting from step 2 through to step 4.

Open the command prompt window (move the mouse to the bottom right hand corner of the screen, select the Search option and enter cmd into the search box). Select Command Prompt from the search results. Within the Command Prompt window, enter:

echo %Path%

The returned path variable value should include the paths to the Android SDK platform tools folders. Verify that the platform-tools value is correct by attempting to run the adb tool as follows:

adb

The tool should output a list of command line options when executed.

Similarly, check the tools path setting by attempting to launch the Android SDK Manager: android

In the event that a message similar to the following message appears for one or both of the commands, it is most likely that an incorrect path was appended to the Path environment variable:

'adb' is not recognized as an internal or external command,
operable program or batch file.

Linux

On Linux this will involve once again editing the .bashrc file. Assuming that the Android Studio bundle package was installed into /home/demo/Android/sdk, the export line in the .bashrc file would now read as follows:

export PATH=/home/demo/java/jdk1.7.0_10/bin:/home/demo/Android/sdk/platform-tools:/home/demo/Android/sdk/tools:/home/demo/android-studio/bin:$PATH

Note also that the above command adds the android-studio/bin directory to PATH variable. This will enable the studio.sh script to be executed regardless of the current directory within a terminal window.

Mac OS X

A number of techniques may be employed to modify the $PATH environment variable on Mac OS X. Arguably the cleanest method is to add a new file in the /etc/paths.d directory containing the paths to be added to $PATH. Assuming an installation location of /Users/demo/Library/Android/sdk, the path may be configured by creating a new file named android-sdk in the /etc/paths.d directory containing the following lines:

/Users/demo/Library/Android/sdk/tools
/Users/demo/Library/Android/sdk/platform-tools

Note that since this is a system directory it will be necessary to use the sudo command when creating the file. For example:

sudo vi /etc/paths.d/android-sdk

Updating the Android Studio and the SDK

From time to time new versions of Android Studio and the Android SDK are released. New versions of the SDK are installed using the Android SDK Manager. Android Studio will typically notify you when an update is ready to be installed.

To manually check for Android Studio updates, click on the Check for updates now link located at the bottom of the Android Studio welcome screen, or use the Help -> Check for Update… menu option accessible from within the Android Studio main window.

Summary

Prior to beginning the development of Android based applications, the first step is to set up a suitable development environment. This consists of the Java Development Kit (JDK), Android SDKs, and Android Studio IDE. In this chapter, we have covered the steps necessary to install these packages on Windows, Mac OS X and Linux.
