Despite predictions to the contrary, we are still a long way from achieving the concept of the paperless office. It is quite common, therefore, to need to connect a printer to a computer system. With this in mind, this chapter will be devoted to covering the steps required to add printer access to an Ubuntu 11.04 system. Printers may be connected directly to an Ubuntu system, accessed over a network or accessed via a Windows system on the same network.

As with many aspects of system administration, Ubuntu makes the installation of a printer straightforward and fast.




Installing a Directly Connected Printer

By far the easiest type of printer configuration is when the printer is attached directly to the system via a parallel, serial or USB port. To configure a local printer simply attach the printer to the appropriate port on the Ubuntu system and switch the printer on. The chances are good that Ubuntu will detect the presence of the new printer in which case a notification will appear on the screen:

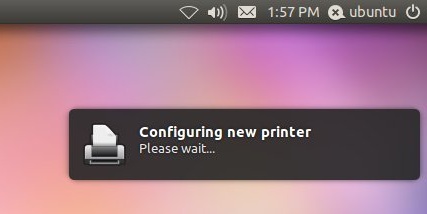

A printer automatically detected on the Ubuntu 11.04 Unity Desktop


If Ubuntu is able to find drivers for the printer the installation will take place automatically and you will be notified once the printer is ready for use:

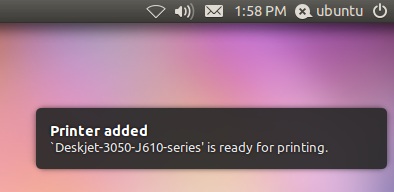

A printer automatically installed on the Ubuntu 11.04 Unity Desktop


If the printer is not detected or does not install automatically make sure the cable to the printer is securely connected, and that the printer is switched on. If the printer is still not detected the next step is to try to manually add it as outlined in the next section.

Manually Installing a New Locally Connected Printer and Printer Driver

When Ubuntu detects a printer it will automatically select a driver if the printer is recognized and a driver is available. To manually add a printer, click on the power button in the top right hand corner of the screen, select System Settings from the menu and click on Printing in the resulting Control Center window to display the Printing dialog:

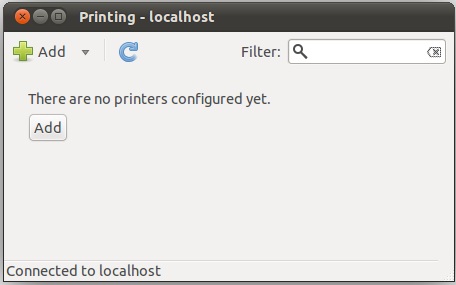

The Ubuntu 11.04 Printer settings dialog


Begin by clicking on the Add button in the toolbar. The New Printer dialog will appear and the system will scan for any attached printers. In the following figure, Ubuntu has detected an HP Deskjet printer connected to the system:


A locally connected Ubuntu 11.04 printer


Select the desired locally connected printer from the list in the left hand panel and click the Forward button. The printer manager will search for and install the correct driver for the selected printer. Finally a screen will appear providing the option to describe the printer in terms of name and optional description and location details. Click Apply to complete the installation. A dialog will appear providing the option to print a test page.

Once the driver is installed you are ready to try out the printer. To access the printer properties after installation, in the Printers dialog select your printer right click with the mouse to pop up the menu and select Properties.


Adding a Network Printer

In addition to printers connected directly to a system, Ubuntu is also able to communicate with network based printers (for example a Wi-Fi enabled printer present on the same network as the Ubuntu system). To add a network based printer, begin by launching the printer settings tool. When the tool appears, click on the Add button located in the toolbar and click on the Network Printer heading located in the Devices panel.

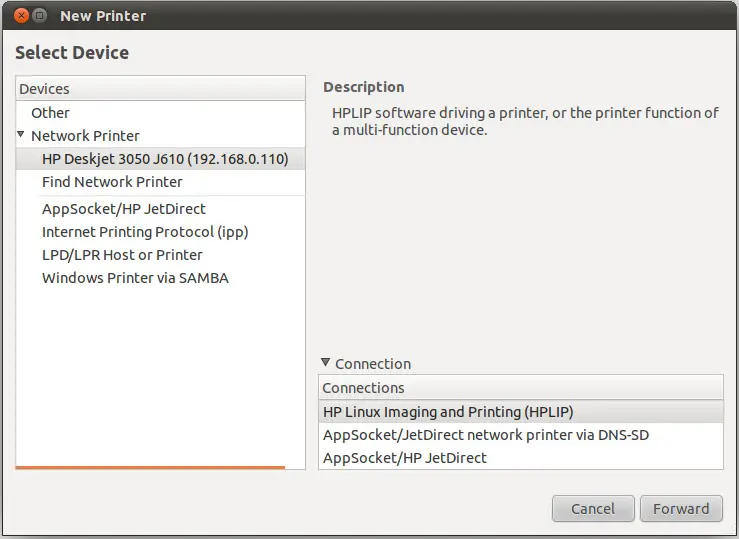

A network printer detected on Ubuntu 11.04


Ubuntu will list any network printers that have already been detected. In the above figure Ubuntu has located an HP Deskject 3050 with an IP address of 192.168.0.110. If your desired network printer is not already listed, select the Find Network Printer option and enter the hostname or IP address of either the printer or the system to which the printer is connected before clicking on the Find button. If Ubuntu can locate the printer it will be listed in the Devices panel. Once located, select the device and click the Forward button to search and install the appropriate driver. Once a driver has been installed, click Forward once again to provide printer name, location and other descriptive details. Finally, click Apply to add the printer to the system and to print a test page if desired.

Configuring a Printer Connected to a Windows System

If you need to access a printer that is connected to a Windows system you can easily configure Ubuntu to support this. The first step is to visit the Windows system and make sure the printer is shared and, ideally, find out the share name (though the Ubuntu Printer configuration tool will allow you to browse the Windows network to find available printers if necessary). On Windows XP select Printers and Faxes from the Start menu and find your printer. Right click on the printer and select Sharing. In the properties dialog select Share this printer if it has not already been selected. Enter a Share name or note the name if one already exists.

On Windows 7, select Devices and Printers from the Start menu, right click on the printer to be shared and select Printer Properties. In the properties dialog select the Sharing tab. In the properties dialog select Share this printer if it has not already been selected and Share name or note the name if one already exists.

On the Ubuntu system, invoke the Printers configuration dialog, click on the Add button in the toolbar and select Windows Printer via SAMBA to display the following configuration panel:

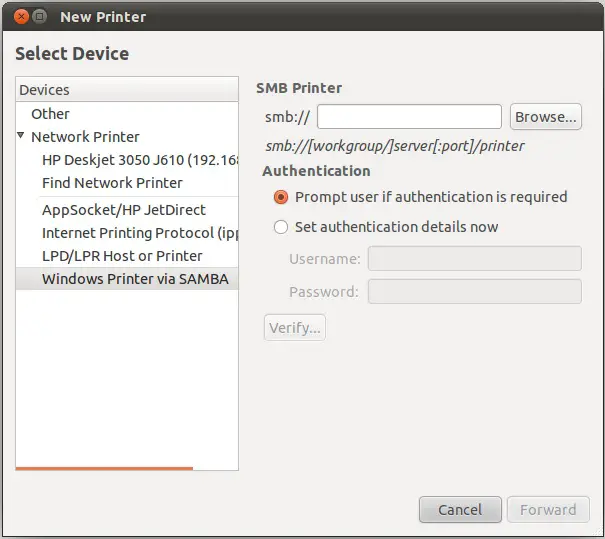

Adding a windows printer to an Ubuntu 11.04 system


If you already know the workgroup, computer name and printer share name of the device to be accessed enter this information using the following syntax:

[workgroup]/server[:port]/sharename

Note that the workgroup and :port values are optional. For example, to configure access to a printer with a share name of hp5850 connected to a Windows system named tahoe residing on the WORKGROUP network, the following would be entered into the smb:// text field:

WORKGROUP/tahoe/hp5850

Alternatively use the Browse button to graphically locate the required printer using the SMB Browser:


The Ubuntu 11.04 Unity SMB Browser


If the shared printer requires authentication you can choose to be prompted for the login and password each time the printer is accessed, or to store these credentials in the Ubuntu printer manager so that they do not need to be manually entered for each print job.

Having selected the correct printer, click on Verify to confirm that the printer is accessible to Ubuntu. If the verification is successful, a message dialog will report Print Share Verified. Assuming a successful verification, click Forward and follow the steps outlined in the previous section to select an appropriate printer driver.

Once the SAMBA printer is configured, right click with the mouse on the new printer in the Printer configuration dialog, select Properties and click on the Print Test Page button. A test page should then appear on the printer.

Configuring a Printer Connected to a Remote Linux System

Ubuntu fully supports printing to printers connected to other remote Linux systems. To achieve such a configuration, invoke the Printing dialog. Click on the Add toolbar button, select Other from the category list and enter the URI of the printer on the remote system. This will be something similar to:

ipp://hostname:631/printers/printername

Where hostname is the either the hostname or IP address of the remote system on which the printer is installed and printername is the name of the printer on that system. Click Forward and install the driver for the printer model.

Once installed, right click with the mouse on the new printer in the Printers dialog, select Properties and click on the Print Test Page button. Assuming a successful installation, a test page should subsequently appear on the remote printer.
